Help CenterCat5e SFTP LAN Cable
Related Products
Basic informations:
Name: Cat5e SFTP LAN cable
Model : DTS-2003A
Material: CCA or Bare Copper
PE: Polyethylene
PVC: Polyvinyl-Chloride
Jacket Color : Yellow , Blue , Gray, Dark gray ,black, white or customized
Size: 100m, 150m,200m,300m,305m,500m,1000m or customized (Standard : 305m/roll)
PS:Cable code& designation:
HS-- LAN Cable
Y--PE insulation
V--PVC jacket
Z--Retardant low smoke zero halogen polyolefine jacket(LSZH)
P--Shield
5--Transmission frequency up to 100 MHz
UTP--Without shield
FTP--Aluminum foil shield

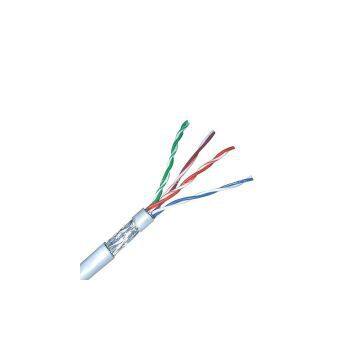

SFTP--Aluminum foil/ copper braid shield
More Details:

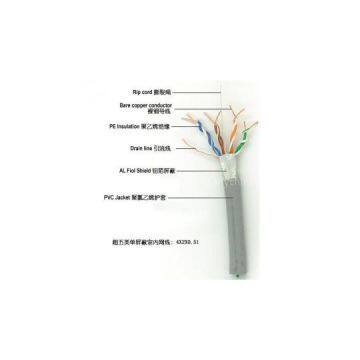

Conductor: CU 0.51mm+-0.01mm (CCAG, CCA,CU+CCA,CU+CCS,CCA+CCS,0.5mm, 0.48mm, 0.45mm,0.44mm,0.4mm,0.38mm)
HDPE insulation: 0.90mm.
Shield: Crystal + Al. Foil.
FR/PVC Grey JACKET. 5.3-5.5mm
Length: 305m/box, 1000ft/roll.
Origin: China.
Cat5 series can be used for network cabling, ADSL net, etc. normal network cable requirements.
IBMACS CCAG series can work at 200mtr. Length. 100mtr support 100mbps. / s. 90mtr pass FLUKE-4300 test. CCAG C series can support 1000mbps at 90mtr.
CU can work at 150mtr. Length, 10-100 mbps.
CU+CCS, CCA+CCS can work at 100-120mtr. 10-100 mbps.
Datasai network factory are professional in producing wiring products, such as cat6, cat5e, cat5 cables, utp, stp, ftp, sftp , outdoor water-proof cable, outdoor water-proof shielded cable, telecable, multipair cable, patch cords, coaxial cable etc., Expecting co-operate with various dealers, engineering's, trading companies etc.
We go in for a supplier for clients with steady-going quality and workable price. OEM orders are acceptable.
Color box size: 35*35*22
Outer carton size: 37*37*46
24 AWG solid bare copper, solid PE insulation,twisted pairs, PVC or LSZH jacket.
