Help CenterFire Monitor With Adjustment by Electric Motor
Related Products
1.Effective capacity: 2400L/min.
2.The max pressure: 16bar.
3.Inlet: Flange DN65 PN16 .
4.Outlet: 2'' screw thread

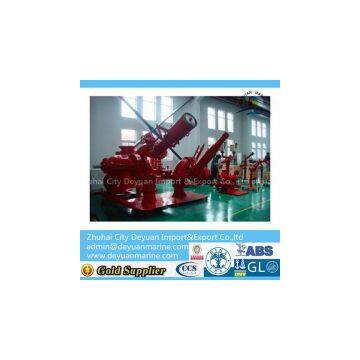

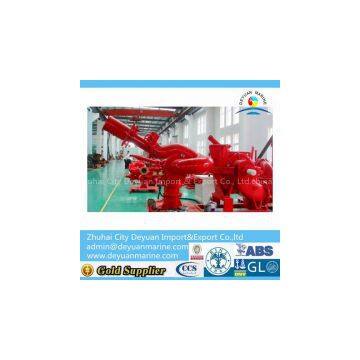

Fire Monitor with Adjustment by Electric Motor
SS65EL Standard Design Parameters SS65FEL/F
China Deyuan Marine Fitting Co.,ltd is leading supplier of FIFI system,Fire fighting system,marine fire pump,foam fire monitor,fire monitor,electric fire monitor,CO2 Fire-extinguishing system,fire extinguishing system,Pls contact us for more specific details.
Descriptions: Produced on requirement
Effective capacity: 2400L/min
The max pressure: 16bar
Inlet: Flange DN65 PN16
Outlet: 2'' screw thread
Optional inlet flange: DN80 PN16 / ANSI2½''/ANSI3''
Rotation range:
Horizontal: 340°
Vertical: +90°~ －75°
Weight: ~60Kg
Materials:
Body: Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy
Sealing: NBR
Pipe: Hard aluminum alloy
Flange: Stainless Steel/Carbon steel/Anti-corrosion aluminum alloy
Painting: Red RAL3000
The monitor can be arrested in any horizontal or vertical position
