1.Product:shark jaw
2.capacity:100 to 700 tonnes SWL
3.Electo-hydraulic(variable, fixed, multi speed, hazardous environments)
4.-Inline vertical type Towing Pin
5.—Angular close top type Towing Pin
6.--Combine Modular type towing Pin& shark Jaw

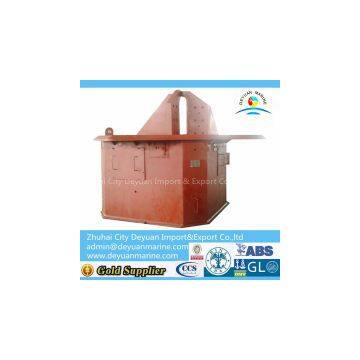

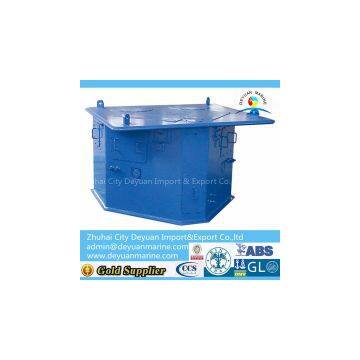

Shark Jaws/Towing Pin
capacity:100 to 700 Tonnes SWL
System Features
Electro-hydraulic(variable, fixed, multi speed, hazardous environments)
-Inline vertical type Towing Pin
—Angular close top type Towing Pin
--Combine Modular type towing Pin& shark Jaw
*We builds a full range of shark Jaws for anchor handling tug supply vessels. Standard ratings
Are 100,200,300,400,500 and 700 Metric Tons and all units perform quick release at the rated
Load.
*we customize our equipment to suit the operating characteristics of your vessels. Third party certificate, load tests ,release tests and load monitoring systems are available options.
*Intended for us with both chain and wire rope. Replaceable jaw inserts are available for different chain sizes.
*When the jaws are retracted they are flush with the deck in their own watertight frame with drain fittings.
*All operations are remotely controlled from a control panel located in the pilot house and/or locally. Controls take advantage of PLC based technology allowing for easier installation with less electrical wiring.A dedicated hydraulic power unit is provided with each unit.
Shark Jaw Model Towing pin model Bollard pull
(ton) Holding capacity
(ton) Power reqired
(kw)
SJ-100 TP-100 40 100 15
SJ-200 TP-200 60 200 22
SJ-300 TP-300 85 300 22
SJ-400 TP-400 120 400 30
SJ-500 TP-500 150 500 30
SJ-700 TP-700 200 700 37
