Help CenterConstruction 6063 T5 Aluminium Window Profiles With Powder Coating
Related Products
-
Electrophoretic Coated Aluminium Window Profiles 6063 T5NegotiableMOQ: 1 Set -
Custom Construction 6063-T5 Aluminium Window Profiles With AnodizingNegotiableMOQ: 1 Set
-
Architectural Aluminium Profiles , Anodized Custom Aluminum Profile For Meeting RoomNegotiableMOQ: 1 Set
-
Powder Coated Side Opening Aluminium Window Frames / Aluminum ProfileNegotiableMOQ: 1 Piece
-
Industrial Powder Coating Aluminium Extrusion Profile 6063 / 6005 T5NegotiableMOQ: 1 Piece
Certification:ISO9001:2004, SGS
Detailed Product Description
| Product Name: | Aluminium Window Profiles | Alloy: | 6063,6060,6463 |
|
Material : |
Aluminium Alloy |
Surface Treatment: |
Mill Finished, Anodizing, Electrophoresis, Powder Coating, Polishing, Wooden grain, Sand blasting |
| Deep Process : | Milling, Drilling ,Bending, Cutting | Temper: | T5,T6,T66 |

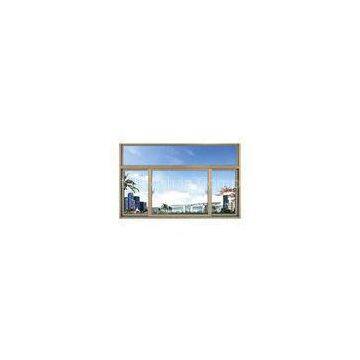

6063 T5 Aluminium Window Profiles With Powder Coating
Description:
| Material | 6063 6060 6463 T5 T6 T66 |
| Surface | Mill Finished, Anodizing, Electrophoresis, Powder Coating ,Polishing, Wooden grain, Sand Blasting |
| Color | Clear Satin, Bronze, Black, Golden, Silver, other colors for Powder Coating |
| MOQ | 1ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container. |
| Length |
For Anodizing and Electrophoresis: Maximum 6.8 Meters For Powder Coating : Maximum 12 Meters |
| Packing | 1) EPE, waterproof paper wrapped in small bundles. 2) paper interleave each piece and packing in wooden box and finally on Steel Rack to pull into container |
| Sample delivery | Two weeks (one week for mould +one week making sample) |
| Sample design | It is better we can get your drawing or sample, we mainly make according to your design, and we can keep confidential for your design. |
| Maximum extruder machine | 3500 tons; Minimum extruder machine: 500 tons |
Primary Technical Data
1) Chemical composition
| Alloy | Si | Mg | Fe | Cu | Mn | Zn | Cr | Ti |
| 6063 | 0.2~0.6 | 0.45~0.90 | <0.35 | <0.10 | <0.10 | <0.10 | <0.10 | <0.10 |
| 6060 | 0.3~0.6 | 0.35~0.60 | 0.1~0.3 | ~ | <0.10 | <0.15 | <0.05 | ~ |
| 6463 | 0.2~0.6 | 0.45~0.90 | <0.15 | <0.20 | <0.05 | <0.05 | ~ | ~ |
| 6005 | 0.6~0.9 | 0.40~0.60 | <0.35 | <0.10 | <0.10 | <0.10 | <0.10 | <0.10 |
| 6061 | 0.4~0.8 | 0.80~1.2 | <0.70 | 0.15~0.4 | <0.15 | <0.25 | 0.04~0.35 | <0.15 |
| 6082 | 0.7~1.3 | 0.60~1.2 | <0.50 | <0.1 | 0.4~1.0 | <0.20 | <0.25 | <0.10 |
| 6351 | 0.7~1.3 | 0.40~0.8 | <0.50 | <0.1 | 0.4~0.8 | <0.20 | ~ | <0.10 |
2) Mechanical property
| Alloy | Temper | Tensile strength | Yield strength | Elongation |
|
6063 |
T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
| T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% | |
| 6061 | T5 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |
About us :
Deyuan Metal Foshan Co., Ltd. is a comprehensive and professional enterprise integrating research, design production and sales of aluminium extrusion profiles for construction and industrial applications. There are currently 26 aluminum extrusion process lines at 500MT TO 2500MT, 3 process lines for anodizing, 2 process lines for powder coating, 1 process line for painting, 1 process line of polishing and brushing. Our annual production capacity has reached 80,000 tons which is at the forefront of the aluminium industry in China.
