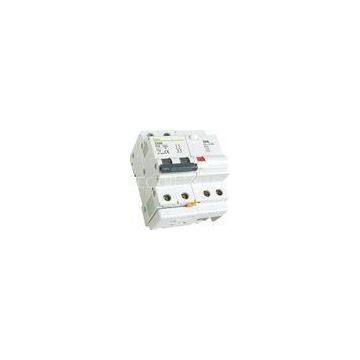

16A 20A 25A 32A Adjustable Residual Current Circuit Breaker RCCB ELCB
Quick Detail:
Place of Origin: Zhejiang, China (Mainland)
Brand Name: JIELI
Model Number: JL-C65NL2
Type: Residual Current circuit breaker
Poles Number: 2
Model: JL-C65NL2
Number of poles(p): 1P+N,3P+N
Rated current(A): 16,20,25,32,40,63
Rated voltage(V): 230V
Rated frequency(Hz): 50/60
Sensitivity (In): 30mA,100mA,300mA
Installation type: standard 35mm guide
Mechanical life: (O-C)no less than 20000 operations
Biggest wiring ability: 25mm2
Circumstance Temperature: -30°C--+40°C
Description:
JL-C65NL2 Residual current circuit breaker mainly prevent electric fire and personal casualty accident caused by personal electric shock or leakage of electrified wire netting, this residual current circuit breaker is a current-operated, fast leakage protector of pure electromagnetic type, which can break off fault circuit rapidly in order to avoid occurrence of accident.
The item of the JL-C65NL2 residual current circuit breaker is precise in structure, less elements, without auxiliary power and high working reliability. The function of the switch won\'t be influenced by ambient temperature and lighting.
Applications:
JL-C65NL2 residual current circuit breaker is applying to the circuit of AC 50/60Hz, 240V single phase, 415V three-phase and below it for industrial and mining enterprise, building trade, commerce and family. The mutual inductor of the item is used to test vector differential value of passing current, and produces are levant output power and add it differential value of protected circuit of personal electric shock is up to or over leakage operating current, the tripper will act and cut off so that the item will take effect of protection.
Specifications:
|
Number of Poles |
2P,4P |
|
Rated Current (A) |
16,20,25,32,40,50,63,80,100 |
|
Rated Residual Operating Current (IΔn)(mA) |
10,30,100,300,500 |
|
Rated Residual Non-operation Current (IΔno)(mA) |
≤0.5 IΔn |
|
Rated Voltage (V) |
AC 230/240 |
|
AC 400/415 |
|
|
Residual Operating Current Scope |
0.5IΔn~IΔn |
|
Residual Current Off-time |
≤0.3S |
|
Short Circuit Capacity (Icu) |
3000A |
|
Endurance |
4000 |
|
Protection Degree |
IP20 |
Our service:
1. Samples: provide free samples.
2. Package: all products will be well packed before shipping.
3. Warranty: all products have 2-5 years warranty.
4. Delivery: within 30days after received the deposit.
5. Provide OEM and ODM service.
6. We can help you with any of your idea to design and put it into production.
7. Provide help for building factories, such as: spare parts, technical questions, financial matter, management problem , approach of sales...
Why you choose our company:
1. Our company, Jieli Electric specialized in marketing research and product development,
It pursues win win business among suppliers, buyers, enterprise and employees, making
customers satisfy as a foremost work.
2. Emphasizing the simultaneous development of production capability and management
capability .Choose
Jieli, choose Coordination and unity of customer, market, development, production, quality,
delivery time.
3. Jieli electric company has seven spirits: Careful, Integrity, Thanksgiving, sharing, collaboration, responsible, diligence, which makes a powerful sales, a powerful team, a powerful enterprise.
Store:
when the products residual current circuit breaker need store for a long time, not control the
products store environment, the metal and the paint coat will be corrod
