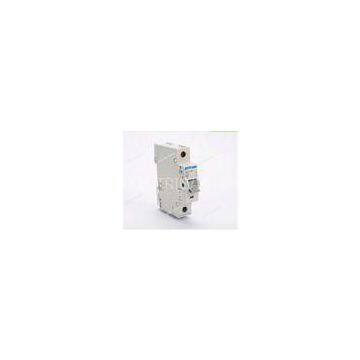

40A 50A 63A MC Mini Circuit Breaker High Power 3000A , Sealed Circuit Breakers

40A 50A 63A MC Mini Circuit Breaker High Power 3000A , Sealed Circuit Breakers thumbnail-1
40A 50A 63A MC Mini Circuit Breaker High Power 3000A , Sealed Circuit Breakers photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
JIELI
Place of Origin:
China
Model Number:
JL-MC
Contact Supplier Request Quote Chat Now
Yueqing Jieli Electrical Company
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name JIELI
Place of Origin China
Model Number JL-MC
Delivery Time:Within 20 days
Certification:CE/ISO9001/IEC60898

40A 50A 63A MC Mini Circuit Breaker High Power 3000A , Sealed Circuit Breakers

Quick detail:

Place of Origin:

Zhejiang china(mainland)

Brand Name:

JIELI

Size:

Miniature

Protect Feature:

Sealed

Usage:

General Purpose

Contact Load:

High Power

Certificates Obtained:

UL, TUV, CQC

Number of poles(p):

1p,2p,3p,4p

Rater current(A):

6,10,16,20,25,32,40,50,63

Rated voltage:

220-415V

Breaking capacity(A):

3000-6000

Description:

★High breaking mini automatic mini circuit breaker application YCBKN has advanced structure,  reliable performance, high breaking capability and pleasing outlook and small size.

★The case and the parts are adopted by high fire-resistant and shockproof plastics.

★MC mini circuit breaker is suitable for using in the circuit with 50HZ/60HZ, rated working voltage 400V and below, rated current up to 63A for protecting the illuminating, distributing  line and of office, house and building from overload, short circuit.

★MC mini circuit breaker also can be used for infrequently switching line under the normal condition.

★MC mini circuit breaker comply with standards IEC60989 and GB10963.

Applications:

Hager series mini  circuit breaker is used in lighting distribution system or motor distribution  system for  protecting  overload and short-circuit in the system.

Specifications:

  Electrical Properties

Rated current

6/10/16/20/25/32/40/50/63A

Rated operating voltage

230/415VAC

Nominal Frequency

50/60Hz

Breaking capacity

3000-10000A

Operating temperature

-5°C - 40°C

Degree of Protection

IP20

Conductor cross section (minimum allowable)

25mm²

Minimum number of power moves

6000

Minimum number of mechanical operations

20000

Operation curve

B/C/D

  Type Of Assembly

FOR RIEL DIN 35mm

  Features

MAGNETIC COIL: ensures the switching of short-circuit, speaking within the following ranges: 5 to 10 times rated current (Type C), 3 to 5 times rated current ( Type B ), 10 to 14 times rated current ( Type D )

BIMETAL: ensures the breaker trip when overloaded.

ARC CHAMBER: effectively dissipates the electric arc that is generated by the opening contacts of the trigger mechanism in the presence of an overload or short circuit.

  Testing For Acceptance

Before receiving the circuit breakers (breakers), customers may perform the tests may be necessary to ensure compliance with the technical specifications.

  Packing

The packaging is sure that withstand any adverse conditions during transport and handling to the warehouse of customers

Competitive Advantage:

1. You inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3. OEM & ODM, any your customized lightings we can help you to design and put into product.
4. Distributoershio are offered for your unique design and some our current models.
5. Protection of you sales area ,ideas of design and all your private information.

Why choose us:

1. Factory :Since 2002

2. Tea
