Certification:CE/ISO9001/IEC60898-1

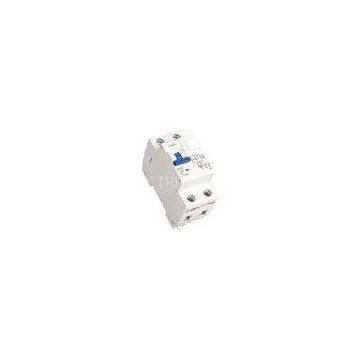

China liushi lowest rccb price residual current circuit breaker
Quick Detail:
|
Place of Origin: |
Zhejiang China (Mainland) |
Brand Name: |
JIELI |
Model Number: |
JL-R7-2 |
|
Type: |
Residual current circuit breaker |
Poles Number: |
2,4P |
Cover: |
fire proof |
|
Point: |
Silver/cooper |
Standard: |
IEC61008/GB16196 |
Certificate: |
CE/ISO9001/IEC60898 |
|
Current: |
1A-100A |
Poles: |
1P,2P,3P,4P, |
Breaking capacity: |
4.5KA, 6KA , 10KA |
|
Warranty: |
5years |
Quality level: |
A |
Description:
JL-R7-2 Residual current circuit breaker Low voltage good quality residual current circuit breaker short circuit protection.
JL-R7-2 Residual current circuit breaker is especially used for illumination and distribution in industry and commerce.
JL-R7-2 Residual current circuit breaker is of pleasing appearance, light weight, reliable performance, high breaking capacity, etc.
JL-R7-2 Residual current circuit breaker’s frame and parts adopt plastics of high inflammable resistance and shock resistance for long service life.
Specifications:
|
Product name |
JL-R7-2 |
|
Standard |
IEC61008/GB16196 |
|
Product Certifications |
CE,CB,3C |
|
Product Function |
Leakage protection, Isolation function |
|
Rated current(A) |
<25 <40 <63 |
|
Pole No |
1P+N 3P+N |
|
Rated voltage(V) |
230V/400V |
|
Rated frequency(Hz) |
50/60 |
|
Sensitivity (In) |
30mA,100mA,300mA |
|
Environment temperature |
-25°C-+60°C |
|
Connection type |
Tunnel style, Pin style, U style |
|
Biggest wiring ability |
35mm2 |
|
Action style |
AC22 |
|
Installation style |
35mm standard 35mm guide |
|
Im,Im(A) |
500 |
|
Inc,Ic(A) |
6000 |
|
Mechanical life |
10000 |
|
Protection degree |
IP20 |
About our company-JIELI:
1.JIELI Electrical is abbreviation for\" Alliance of JIELI Electrical Industry\", with JILI brand and ICEDC brand.
2.JIELI Electrical have 29 members and more than 2000 employers, all of the plants area are about 50000 square meters.
3.JIELI Electrical devoted in producing low-voltage circuit breaker and other related products. .
4.At present, JIELI main products MCB,MCCB,RCCB, Distribution box, AC contactor, Relay, Switch and more than thousands electrical goods sp
