AISI304 Plummer Block Bearing SN205 - SN232 For Electric Power , Papermaking

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 0 Set / Sets per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Miru ,OEM And So On		Place of Origin	China
Model Number	SN205 - SN232

Product Description

Delivery Time:45 DAYS
Certification:ISO9001

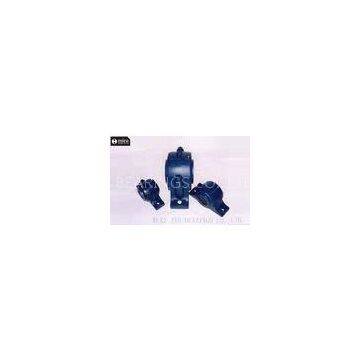

SN Plummer Housing / Plummer Block Bearing SN205 - SN232 AISI304 For Housings

Application
Mechanical equipment, hydropower, construction, railway, automobile, steel, electric power, textile, packaging, medical treatment, metallurgy, mining, petroleum, electric power, papermaking, computers, electrical machinery, sports equipment, office equipment, instruments and meters, automobile motor, precision instruments, etc

They are easy to mount and require no additional location on the shaft. They are made up of sleeve, lock nut and lock washer. The main model No is H series, HE series, HS series, HA series and OH series.

Pillow Block Bearing
Pillow Block Bearing is the rolling bearing and bearing seat together.Most particularly the spherical bearing are made spherical outer diameter, and the imported bearing with spherical inner hole to install together, variety structure, good versatility and interchangeability.

Split Plummer block, whose cap and base can be separated, mainly bear radial load. It fits for self-aligning spherical roller bearings or self-aligning spherical ball bearing. They are used in metallurgy, mining, conveyor systems, environment protecting and other industry. The main model No is SN series,SD series,SNU series,SNL series,1500,1600 series,Z2500Y,Z2600Y series,GZ2,GZ4 series and so on. The main difference is load and seal type (oil felt, TG, U-lock, TS ). They has good heat conduction, and also can simplify mounting and dismounting procedures, improve sealing efficiency etc.

Plain Bearing Block Housings are made up of cap, base ,aluminum bronze bushing and installing bolts, which mainly bear radial load. They needn’t to be matched with bearings, so very easy in application. There is one oil groove in the bronze bushing, where lubricant can flow into the axis from the oil hole on the cap of housings. They are mainly used in metallurgy and conveyor systems. The main model No is H2000,H4000,ZHC4-00,HX000,HZ000,ZHC2-00,XHC4-00.

Insert ball bearing units is composed of outer spherical ball bearing and pillow block. In application, it doesn’t need bearing housing., dimension is small and structure is simple, which is easy for use. The insert ball bearing units is solid type, which is rigid and can change with other types. They are able to compensate for initial errors of alignment. Besides, they are sealed at both sides, which can be used in agricultural machinery, construction equipment, conveyor systems, textile machines and fans as well as in machines for food and beverage processing and packaging.

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating as they can be used on smooth or stepped shafts.

SN500(SSN500) SN600(SSN600) SN200 SN300 SNU500 S3000K SD3000 SD3100 SD500

SD600 SN3000(SSN3000) SN3100(SSN3100) 1500 1200 722500 SAF500 SAF600

Housing No.	Shaft dia (mm)	Dimensions(mm)	Housing Wt (kg)
d	d1	D H8	a	b	c	g H12	h h12	L	W	m	u	v	f1 H12	f2	d2 H12	d3 H12
SN205	25	30	52	165	46	22	25	40	67	75	130	15	20	4	5.4	31.5	43	1.4
SN206	30	35	62	185	52	22	30	50	77	90	150	15	20	4	5.4	36.5	48	1.9
SN207	35	45	72	185	52	22	33	50	82	95	150	15	20	4	5.4	46.5	58	2.0
SN208	40	50	80	205	60	25	33	60	85	110	170	15	20	5	6.9	51.5	67	3.0
SN209	45	55	85	205	60	25	31	60	85	112	170	15	20	5	6.9	56.5	72	3.2
SN210	50	60	90	205	60	25	33	60	90	115	170	15	20	5	6.8	62	77	3.4
SN211	55	65	100	255	70	28	33	70	95	130	210	18	23	5
