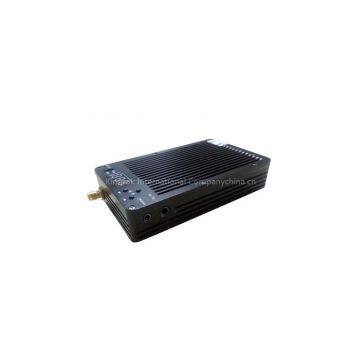

Minimum Lightweight UAV COFDM Video Transmitter With Battery , Up To 20km Distance
Introduction:
It has character of super light weight and mall size,use MPEG2 coding format and COFDM (coded orthogonal frequency division multiplexing) digital modulation, provide high quality image in revolution 720*576.Support NLOS transmission and reception as well high speed mobile transmission.Can be carried in your pocket / briefcase for secrect evidence. it can send live video of the scene circumstances to the rear command post. Widely used in UAV,public security organs, procuratorate, court and security bureau etc.
Features:
Transmitter only has 195g net weight(without battery),very easy for portable and UAV applications. COFDM modulation, Stable transmission MPEG-2 video compression, DVD video quality; Modular design and highly integrated NTSC/PAL automatically adapt ,support user adjustable; Shortly time delay; Supports high-speed mobile NLOS ( Non Light Of Sight ) transmission; Lithium battery for power supply(continuous working time is 3 hours max) Adjustable working frequency,bandwidth,RF power and etc. Transmission security by encryption of AES 265 bit. Good quality image without any mosaic; Matched with multifunction amplifier for longer range requirement.
Transmitter Specification:
| Modulation | COFDM |
| DC Input | DC7.5-12V |
| Working Current | 0.9A-13A |
| Constellation | QPSK,16QAM,64QAM(optional), QPSK/16QAM/64QAM @ 6/7/8MHz |
| FEC | 1/2,2/3,3/4,5/6, 7/8 |
| Guard Interval | 1/32,1/16,1/8,1/4 |
| Bandwidth | 2/2.5/4/8M(adjustable) |
| A/V Interface | BNC / RCA |
| Frequency | 300-900MHz(option) |
| Encryption | AES 128 bit / ALLTECH Basic scrambling |
| Flatness | ≤2dB(within full frequency range) , ≤0.5dB (within 8MHz) |
| Carrier | 2K |
| Power Output | 30dBm max (100-1000mW adjustable),in 1dB step |
| CNR | ≥-30dB @ 30dBm power output |
| SHG | >52dBc |
| Video Signal | 1Vp-p@75Ω,NTSC/PAL adaptive |
| CBER | <2.0E-4 |
| Video Compression | MPEG-2 4:2:0 /MPEG-4 (optional) |
| Resolution | 720×576(PAL) , 720×480(NTSC) |
| Video rate | 15Mbps(MAX) |
| Video Input | 1 line PAL / NTSC analog video |
| RF Interface | SMA |
| Video Format | PAL/NTSC(adjustable) |
| Battery Working time | 1 hour |
| OperatingTemperature | -25℃~55℃ |
| Storage Temperature | -40℃~70℃ |
| Distance | max 20km LOS distance (on helicopter),1-500m NLOS distance |
| Size | 100*59*22mm |
| Weight | 195g(without battery) 288g(with battery) |
Receiver specificatations:
| Frequency | 300-900MHz(option) |
| Bandwidth | 2/2.5/4/8MHz (adustable) |
| RF Level Input | -92dBm~-20dBm / -105dBm~-20dBm |
| RF Impedance | 50Ω |
| RF Interface | N female |
| Modulation | COFDM |
| Constellation | QPSK,16QAM,64QAM(optional), QPSK/16QAM/64QAM @ 6/7/8MHz |
| FEC | 1/2,2/3,3/4,5/6,7/8 (optional) |
| Guard Interval | 1/32,1/16,1/8,1/4 (optional) |
| Carrier | 2K,8K |
| Video Decoding | ISO/IEC13818-2 MPEG-2MP@ML |
| Aspect Ratio | 4:3, 16:9 |
| Resolution | 720×576(PAL) , 720×480(NTSC) |
| Audio Output | Analog stereo left and right channels |
| Lines of horizontal | 625 or 525 Line |
| Decryption | AES256 bit / ALLTECH Basic scrambling |
| Working Voltage | AC220V / DC12V |
| Temperature | -30~70° |
| Dimension | 430*310*65mm (1U Aluminium alloy box) |
| Weight | 3.5 kg |
Product application:
