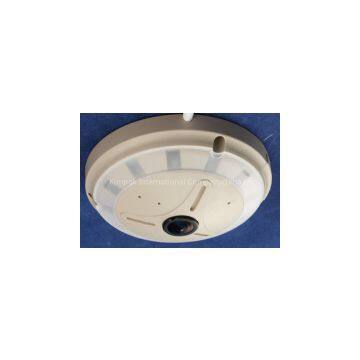

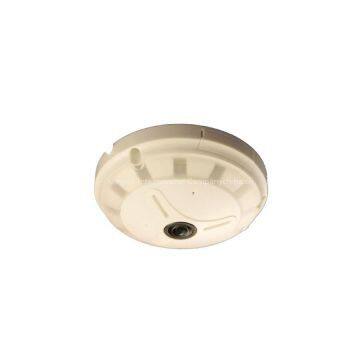

360 Degree Wide Angle 1.3 Megapixel IP Camera HD Fisheye IP Camera
Introduction:
The Megapixel fisheye panoramic IP Camera is also a hidden security camera like 360 degree panoramic CCTV dome camera. It uses a fisheye lens, designed to provide a high-resolution picture with a very wide viewing angle 360 degrees panoramic range without blind spots, no dead angle, real time monitoring. It is specially designed to monitor those opening areas such as hallway, store, office, shopping mall, and parking lot, and the places which require high definition image display. There is no need to set up multiple cameras except installing this product in this area.
Feature:
The fisheye panoramic camera is mainly used for remote video transmission based on IP network. The product adopts H.264 hardware compression technology which enables the device to transmit high-quality video at a speed of 25 frame/sec on LAN/WAN. The camera is entirely based on TCP/IP protocol. It has a built-in Web server to support IE browser. It can be adjusted, opened, updated through network. The management and the maintenance of the camera is convenient.
1.3MP@25 fps;
High sensible and IR enhanced SONY sensor;
High permeable /resolution glass fisheye lens with 180 degree horizontal/vertical field of vision;
High sensible and low noise pickup system;
Omni-directional IR Illumination;
Specification:
Optoelectronic | |
Lens | Fisheye lens, f=1.29mm, F=2.2 |
Field of Vision | Horizontal 185° /Vertical 185° |
Iris | Fixed |
Sensor | 1/3\\" Progressive Scan CMOS |
Sensibility | 0.2Lux@F2.2(Color)/0.02Lux@F2.2(B/W) |
Day/Night | Auto switch IR cut |
IR Illumination | 1W@850nm |
Image | |
Image Flip | Horizontal/Vertical |
Image Adjustment | Brightness, Saturation, Sharpness, Contrast, Tone |
Max. Resolution | 1.3 Megapixels (1280×1024) |
Video Coding | Dual Stream H.264 |
Bit Rate | 100Kbps~5120Kbps |
Max. Frame Rate | 25fps |
Audio | |
Microphone | Internal |
Audio Coding | G.711 |
Pickup Distance | 6 Meters |
Panoramic Function | Enabled by software |
Panoramic Display | 360° panoramic expansion-view,180° 2 split-view, 90° 4 split-view Longitude and latitude correcting view(wall mounted) |
DPTZ | Digital PTZ, Pan/Tilt/Zoom |
Intelligent Function | |
Motion Detection | 20×15 Regional detecting, Sensibility 1~6 adjustable |
Alarm Function | |
Alarm Trigger | Motion Detection/Video Tampering/Abnormal procedure/Alarm Input |
Alarm Action | Alarm Record/Image Snap, Alarm Video/Image Upload(FTP/Email) |
Network | |
Protocol | TCP/IP, HTTP, DHCP, DNS, RTP/RTSP, FTP, PPPOE, SMTP, NTP |
Compatibility | ONVIF2.0 |
Interface | |
Communication Port | 1 RJ45 10M/100M Ethernet |
Power Interface | ø5.5-2.1mm round DC socket |
Local Storage | Up to 128G SD Card |
General | |
Power Supply | DC12V±10%, 1A |
Power |
