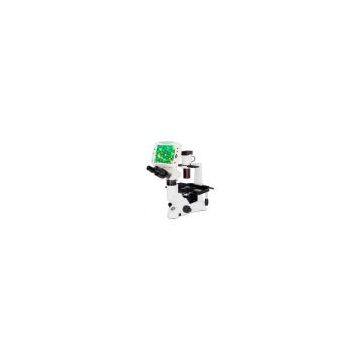

DMS-651 Digital LCD Inverted Microscope
| Digital Parts | Pixel | 5 Mega | |
| Photo Resolution | 2560X1920-1600X1200 | ||
|
Video Resolution |
640X480 | ||
| Sensor Size | 1/2.5 Inches | ||
| LCD Screen |
8 Inches TFT Screen, Resolution is 800X 600 |
||
| Video Output | AV Output (NTSC/PAL) | ||
| Data Output | USB2.0 | ||
|
Menu Language |
Chinese / English |
||
| Storage | SD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4G) | ||
| Scene Mode | Standard / Softness / Vivid | ||
| Exposure Mode | Auto Exposure | ||
| Optical Parts | Viewing Head | Compensation Free Binocular Head, Inclined at 30°, Interpupillary Distance 48 -75mm | |
| Eyepiece | High-point, Extra Wide Field Eyepiece EW10×/ 22 | ||
| Objective | LWD Infinite Plan Objective | 4×/ 0.1,WD 18mm | |
| 40×/ 0.6,WD 2.6mm | |||
| Infinite Plan Phase Objective | PH10×/ 0.25,WD 10 mm | ||
| PH20×/ 0.4,WD 5.1mm | |||
|
Nosepiece |
Quintuple Nosepiece | ||
| Condenser | ELWD Condenser NA 0.3, LWD 72mm (Without Condenser 150mm) | ||
| Annulus | 10×-20×,40× Phase Annulus Plate | ||
|
Stage |
Plain Stage 160×250mm, | ||
| Glass Insert | |||
| Auxiliary Stages 70×180mm | |||
| Focusing |
Coaxial Coarse and Fine Adjustment, Vertical Objective Movement;Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation |
||
| Illumination | Halogen Lamp 6V/ 30W | ||
|
Filter |
Diameter 45mm, Blue,Green and Ground Glass |
||
| Optional Parts | Objective |
LWD Infinite Plan Objective |
10×/ 0.25, WD 10mm |
| 20×/ 0.4, WD 5.1mm | |||
| Infinite Plan Phase Objective |
PH40×/ 0.65, WD 0.35mm |
||
| Centering |
Centering Telescope (Φ30MM) |
||
| Phase Annulus | 10×-20×,40× Phase Annulus Plate | ||
| Stage | Attachable Mechanical Stage, X-Y Coaxial Control,Moving Rang 120×78mm | ||
|
Terasaki Holder |
|||
| Φ38mm Petri Dish Holder | |||
