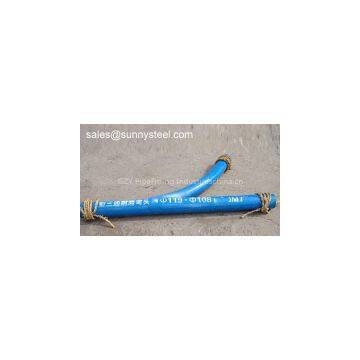

Ceramic Lined Composite Y-type Tee

Abrasion resistant ceramic lined tee from a single spool piece to complete piping systems. We specialize in ceramic restriction bend and flow conditioning assemblies to tame the most demanding flow applications.

The Manufacturing Process of Ceramic Lined Y-type tee:

SHS(Self-propagating High-temperature Synthetic process)ceramic lined steel pipe and elbow create a new generation of abrasion and corrosion resistant engineering pipeline.The composite steel pipe is composed of three layers: ceramic, intermediate, and steel layers. The ceramic layer is formed by molten alumina at a temperature above 2500 degree. The molten alumina produced from the reaction Fe₂O₃+2Al=2Fe+Al₂O₃ spreads on the inside wall of the steel pipe under the influence of a centrifugal force, then solidifies, so the ceramic layer has high density and smooth surface and bonds to the steel pipe.
