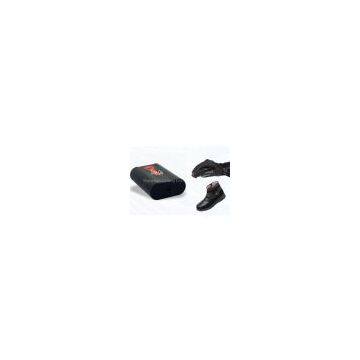

3.7v 4400mAh/ 5200mAh Heated Shoes Battery 4-step Temperature Control

3.7v 4400mAh/ 5200mAh Heated Shoes Battery 4-step Temperature Control thumbnail-1
3.7v 4400mAh/ 5200mAh Heated Shoes Battery 4-step Temperature Control photo-1
Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Place of Origin:
China
Model Number:
Contact Supplier Request Quote Chat Now
Shenzhen Lixiang Energy Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China

Parameters:
1,Nominal Voltage:3.7V
2,Model:L X-DRF03M, LX-DRF03H
3,Working Voltage:3V-4.2V
4,Nominal Capacity:4400mAh, 5200mAh
5,Charge Cut-off Voltage:4.2V
6,Charge Current:1 A
7,Standby Current:≤15μA
8,Max. Output Power:15W MAX
9, Operating Efficiency:≥99%
10,Loading Resistance:5Ω-200Ω
11,Charge Method:CC/CV-Constant Current/Constant Voltage
12,Charge Temperature:0℃_40℃
13,Discharge Temperature:-20℃~ +60℃
14,Charge Duration:4-5hrs(Standard)
15,Cycle Life Time: Above 500 cycles
16,Power Self-Consumption:7.5-14.2uA
17,Internal Impedance:PCB Internal Impedance<80mΩ; Battery Internal Impedance <180mΩ
18,Battery Size: 70*48*22mm
19,Weight: 130g 20,Output Terminal:DC3.5*1.35mm

 Features:
1,BAK, SAMSUNG or SANYO CELL
2,Smart Power Management
3,LED Display
4,Four adjustable pulse outputs
5,Protection circuit inside
6,Different colors are optional
7,CE, FCC, RoHs Compliant
8,One Year Warranty

Charger
1,Input: AC 100V-240V/50-60HZ;
2,Output: DC4.2V/1A (CC/CV Mode)
3,Charge indicator: LED red when charging, LED green after fully charged
