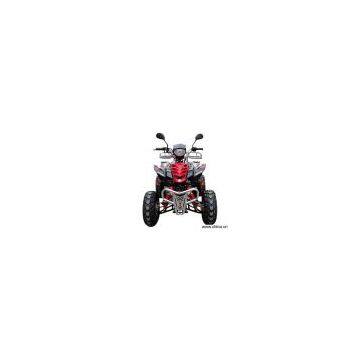

Sell ATV (EEC Approved)

Model No.:JX110ST-3
Product Origin:China
Brand Name:JUNESUN
Price Terms:
Payment Terms:
Certification:
Description:Specifications: 1) Engine type: single cylinder, air cooled, 4-stroke 2) Bore x stroke: 52.4 x 49.5mm 3) Displacement: 106.7ml 4) Compression ratio: 9.1:1 5) Starting mode: electric 6) Ignition mode: CDI 7) Lubrication: press, splash 8) Gearshift: 3 forward gears, 1 internal reverse gear, automatic clutch 9) Transmission: shaft drive 10) Brake types: front drum / rear drum 11) Packing lock: mechanic lock 12) Front suspension: double arm with gas charged shock absorber 13) Rear suspension: mono-shock 14) Max. power: 4.6kW / 7,500rpm 15) Max. torque: 6.5N.m / 6,500rpm 16) Max. speed over 40km/h 17) Dimensions (L x W x H): 1,585 x 980 x 1,010mm 18) Wheelbase: 1,110mm 19) Min. ground clearance: 150mm 20) Dry weight: 150kg 21) Battery: 12V / 9mAh 22) Climbing degree: over 20 degrees 23) Tank capacity: 4L 24) Tire specifications: a) Front: 19 x 7.0-8 b) Rear: 18 x 9.50-8 25) Seat height: 770mm 26) Min. turning radius: 2,400mm 27) Max. load: 150kg 28) Engine oil: 1L Conveyance: Qty/20' FCL: 30 units Qty/40' FCL: 66 units
