Product Origin:China
Brand Name:
Price Terms:
Payment Terms:
Certification:

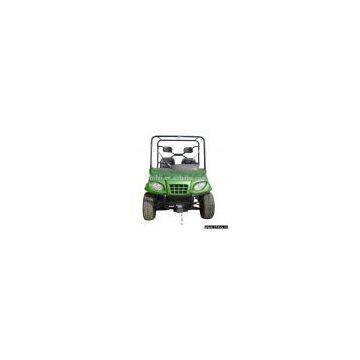

Description:Product Name: 650cc 4WD Utility VehicleModel Number: BFU-650Place of Origin: ChinaSpecifications of 650cc 4WD utility vehicle: Dimensions: Overall length: 116in. (2,950mm) Overall width: 62in. (1,580mm) Overall height: 72in. (1,830mm) Wheelbase: 78in. (1,990mm) Front track: 48in. (1,220mm) Rear track: 47in. (1,200mm) Ground clearance: 11.6in. (295mm) Engine: Type: 2 cylinders, 4-stroke, liquid-cooled Bore x stroke: 76 x 71mm Displacement: 644cc Compression ratio: 8.4:1 Carburetor: BJH101E or CSH101E Max. power: 20.6kW/5,300rpm Max. torque: 44N.m/2,700 - 3,300rpm Starting: electric Ignition: CDI Lubrication: force and splash Transmission: manual clutch, 4 shifts/reverse Spark plug: F6T or F6TC Plug gap: 0.7±0.1mm Fuel type: RQ93 (unleaded) Lubricate oil: SAE-15W/30 Capacity: Turning radius: 157.5in. (4,000mm) Fuel tank: 25.0L Engine oil: 2,900ml Coolant: 4,000ml Starting: <5s Climbing: 20°- 25° Battery: 12V, 36A Head light: 12V, 80W/both Tail light: 12V, 52W/both Fuse: 35A Max. speed: 36 miles/h Chassis: Front, rear brake: hydraulic disc, right foot control Front tire: 25 x 8-12 Rear tire: 25 x 10-12 Front suspension: independent dual A-arm Rear suspension: independent dual A-arm Drive train: 2WD/4WD shaft Tire pressure: Front: 205KPa, 2.1kg/cm2, 30psi Rear: 205KPa, 2.1kg/cm2, 30psi Weight: Max. load capacity: 600kg (770lbs) Net weight: 620kg (1,364lbs)
Send Inquiry to This Supplier
