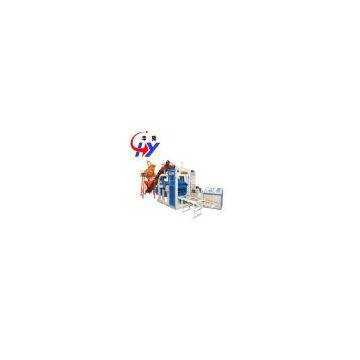

Automatic Block Machine HY-QM4-12
US$ 30000 - 30000
/ Set
1 Set(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | HY | Place of Origin | China | |
| Model Number | HY-QM4-12 |
Product Description
Cement produces various products, hollow block, solid standard bricks, vias brick, brick pathways, square brick road shoulder, river brick, the terminal bricks, insulation layer, lawn brick, a multi-purpose machine, completely meet market demand, the greatest degree of users reduce investment risk
Technical Features
Classic vibration mode, particularly suitable for production of high-strength blocks, such as standard bricks. Short molding cycles, and higher efficiency.
Vibration machine for efficient vibrator, exciting force powerful, the density effect of better products.
Forming large area, can produce a variety of cement products, a wide range of production.
Compulsory mechanical positioning, infantry expected rapid, uniform and manufactures precision, consistency, good.
PLC automatic control systems, interactive user interface, the control system, security configuration logic control, production procedures and fault diagnosis display.
The low cost of production, raw materials, make full use of sand, stone powder, flour, coal ash, slag, and other residue.
|
Production Scale |
|||||
|
Product |
Specifications |
Bricks/Mould |
Bricks/Day |
10,000 Bricks/Year |
|
|
Standard bricks |
240*115*53(mm) |
26 |
62400 |
1872 |
|
|
Blind Hole brick |
240*115*90(mm) |
12 |
28800 |
864 |
|
|
Block |
390*190*190(mm) |
4 |
9600 |
288 |
|
|
Block |
390*240*190(mm) |
3 |
7200 |
216 |
|
|
Technical parameters |
|||||
|
Main Board Size |
3800*2400*3100 (mm) |
||||
|
Forming area |
800*500 (mm) |
||||
|
Forming a high degree |
50-240 (mm) |
||||
|
Molding cycle |
10~15 (mm) |
||||
|
Pallet size |
810*520*25 mm |
||||
|
Host weight |
41.5KW |
||||
|
Complete machine power |
10.2t |
||||
