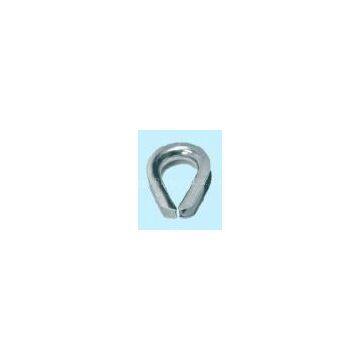

Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Wire Harness > G414 US Type Thimbles
US$ 0.4 - 0.4
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
XINGYU
Place of Origin:
China
Model Number:
XY09-01
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
Brand Name
XINGYU
Place of Origin
China
Model Number
XY09-01
High Polished Stainless Steel - AISI 316/304
| Art.No. | Size(IN.) | A(IN) | B(IN) | C(IN) | D(IN) | E(IN) | F(IN) | G(IN) | H(IN) |
| XY09-0101 | 1/4 | 2.19 | 1.63 | 1.5 | 0.88 | 0.41 | 0.28 | 0.06 | 0.23 |
| XY09-0102 | 5/16 | 2.5 | 1.88 | 1.81 | 1.06 | 0.5 | 0.34 | 0.08 | 0.28 |
| XY09-0103 | 3/8 | 2.88 | 2.13 | 2.13 | 1.13 | 0.63 | 0.41 | 0.11 | 0.34 |
| XY09-0104 | 7/16 | 3.25 | 2.38 | 2.38 | 1.25 | 0.72 | 0.47 | 0.13 | 0.38 |
| XY09-0105 | 1/2 | 3.63 | 2.75 | 2.75 | 1.5 | 0.81 | 0.53 | 0.14 | 0.41 |
| XY09-0106 | 9/16 | 3.63 | 2.75 | 2.69 | 1.5 | 0.88 | 0.59 | 0.14 | 0.41 |
| XY09-0107 | 5/8 | 4.25 | 3.25 | 3.13 | 1.75 | 0.97 | 0.66 | 0.16 | 0.5 |
| XY09-0108 | 3/4 | 5 | 3.75 | 3.81 | 2 | 1.22 | 0.78 | 0.22 | 0.66 |
| XY09-0109 | 7/8 | 5.5 | 4.25 | 4.25 | 2.25 | 1.38 | 0.94 | 0.22 | 0.75 |
| XY09-0110 | 1 | 6.13 | 4.5 | 4.94 | 2.5 | 1.56 | 1.06 | 0.25 | 0.88 |
| XY09-0111 | 1 1/8--1 1/4 | 7 | 5.13 | 5.88 | 2.88 | 1.81 | 1.31 | 0.25 | 1.13 |
| XY09-0112 | 1 1/1--1 1/8 | 9.06 | 6.5 | 6.81 | 3.5 | 2.19 | 1.44 | 0.38 | 1.13 |
| XY09-0113 | 1 3/8 1 1/2 | 9 | 6.25 | 7.13 | 3.5 | 2.56 | 1.56 | 0.5 | 1.13 |
| XY09-0114 | 1 5/8 | 11.25 | 8 | 8.13 | 4 | 2.72 | 1.72 | 0.5 | 1.38 |
| XY09-0115 | 1 3/4 | 12.19 | 9 | 8.5 | 4.5 | 2.84 | 1.84 | 0.5 | 1.31 |
