US$ 420 - 420
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Place of Origin:
China
Model Number:
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
Place of Origin
China

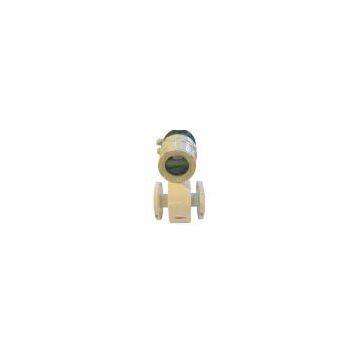

Electromagnetic Flow meter Pother industries. Without the effects of viscosity, temperature, pressure, density, it may determine the conductivity of the fluid.
|
Sensor |
||||
| Model | DM43 | DM47 | DM41 | DM48 |
| Ex-Design | No | Exd[ia]iamIICT5 | No | Exd[ia]iamIICT5 |
| Size | DN3-DN2000 | |||
| Pressure class |
Standard: 0.6-4.0 (divide according to calibre) Special:according to demands of users |
|||
| Flange material | Carbon steel, stainless steel | |||
| Liner | Rubber, PTFE, PFA and so on. | |||
| Electrode Material | 316,316L, Hb, Hc, titanium, tantalum, platinum-iridium, etc | |||
| Grounding electrode (ring) material | 316,316L, Hb, Hc, titanium, tantalum, platinum-iridium, etc. | |||
| Conductivity | >= 5μS/cm | |||
| Fluid temperature | -40℃ ~+180℃ ( PTFE lining ), -25℃ ~+65℃ ( Rubber lining ) | |||
| Protection class | IP67,IP68 | |||
| Converters | ||||
| Supply Power | 24VDC or 220VAC | |||
| Signal output | Electric current 4-20mA, frequency output,pulse output | |||
| Power consumption | <=10W (AC power supply;<=6W (DC power supply) | |||
| Status display | LCD,instant and accumulation | |||
| Ambient condition | Ambient temperature: -20℃~60℃; Relative humidity: 5%~90% | |||
| Accuracy | +(-)0.5% rate ( standard), +(-)0.2% rate (high accuracy ) | |||
| Repeatability | +(-)0.2% rate | |||
| Measuring range |
Recommended range of use:0.5m/s~10m/s continuous adjustable Maximum range of use:0.01m/s~15m/s continuous adjustable
|
|||
| Excitation | Frequency excitation 6.25,12.5,15,25,30HZ | |||
| communication | Hart communication (option), RS485 communication (option) or Field bus | |||
| Protection class | IP67orIP68 | IP67orIP68 | ||
| Ex-Design | no | Exd[ia]iamIICT5 | no | Exd[ia]iamIICT5 |
| Cable Connection | M20×1.5or1/2 〃 NPT | |||
| Housing | Cast aluminum | |||
