SFP CWDM 1.25Gb / s BIDI 80KM Transceiver
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
Product Details
Brand Name: | GB-Link/OEM | Place of Origin: | China | Model Number: | GB-SFP-BDC-24XX-80 |
Product Description
Certification:UL, CE,ROHS, FCC, TUV

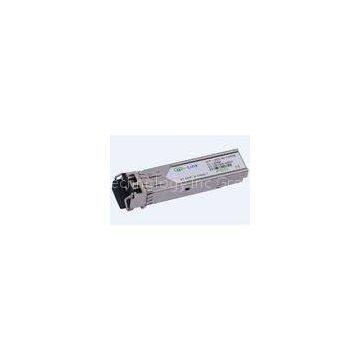

SFP BIDI CWDM 1.25G 80KM Transceiver
Quick Detail:
Wavelength |
xx |
Clasp Color Code |
Wavelength |
xx |
Clasp Color Code |
1270 nm |
27 |
Gray |
1450 nm |
45 |
Brown |
1290 nm |
29 |
Gray |
1470 nm |
47 |
Gray |
1310 nm |
31 |
Gray |
1490 nm |
49 |
Purple |
1330 nm |
33 |
Purple |
1510 nm |
51 |
Blue |
1350 nm |
35 |
Blue |
1530 nm |
53 |
Green |
1370 nm |
37 |
Green |
1550 nm |
55 |
Yellow |
1390 nm |
39 |
Yellow |
1570 nm |
57 |
Orange |
1410 nm |
41 |
Orange |
1590 nm |
59 |
Red |
1430 nm |
43 |
Red |
1610 nm |
61 |
Brown |
Description:
GB-LINK’s GB-SFP-BDC-24XX-80 Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the DFB laser and the PIN .The module data link up to 80KM in 9/125um single mode fiber.
The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.
Applications:
Switch to Switch Interface Gigabit Ethernet Switched Backplane Applications Router/Server Interface Other Optical LinksSpecifications:
Up to 1.25Gb/s data links DFB laser transmitter PIN photo-detector Up to 80KM on 9/125µm SMF Hot-pluggable SFP footprint BIDI LC/UPC type pluggable optical interface Low power dissipation Metal enclosure, for lower EMI RoHS compliant and lead-free Single +3.3V power supply Support Digital Diagnostic Monitoring interface Compliant with SFF-8472 Case operating temperature Commercial: 0°C to +70°CCompetitive advantage:
High reliability and consistency Good pricing Full compatible (CISCO/HP/Extreme/Juniper/H3C…) OEM/ODM Customized label Fast deliveryContact Us
