Shot Blasting Machine -Q38 double route series Hanger chains type Continuous Working Overhead Rail
Shot Blasting Machine-Q48 single route series Hanger Stepping Type Continuous Working Overhead Rail

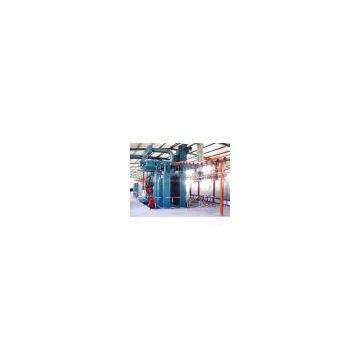

This series uses multiple-step and rotating point fixed method to clean away the antiquated sand and oxidation layer from the surface quickly, and makes the surface bright and clean. It is mainly used for the fitting of vehicles such as the bolster, side frame, coupler and coupler yoked, also for cleaning the casting and work pieces with the similar size.
Hanger Stepping Type Hanger Stepping Type Hanger Stepping Type
Name Continuous Working Continuous Working Continuous Working
Overhead Rail Shot Overhead Rail Shot Overhead Rail Shot
Blasting Machine Blasting Machine Blasting Machine
Q383 Q483 Q385 Q485 Q4810
Cleaning work pieces
Size (mm) Ф800×1200 Ф1000×1500 Ф1000×2500
Number of work position 2 2 2
Quantity of impeller head 4 4 6
impeller head volume(kg/min) 4×250 4×250 6×250
Impeller head
Power (KW) 4×15 4×15 6×15
Max hanging
weight (kg) 300 500 1000
Productivity
hanger/h 30~60 30~60 40~60
Size of the
cleaning room(mm)7680×2000×2900 7680×2000×2900 7680×2000×3800
Total air rate
volume (m3/h) 17000 19000 19000
Total power (except
For dust cleaning) KW 73.15 73.15 114.72
