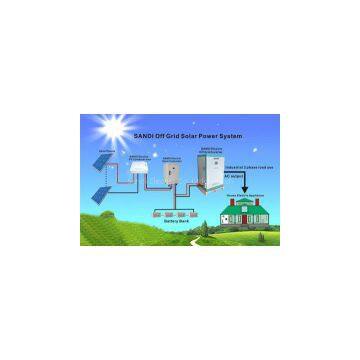

10kw Output Power and Split Phase 120/240V, 60Hz Output Type Pure Sine Wave Inverter for Wind/solar Power System

Model: SDP-10KW
Type: DC/AC Inverters
Isolation mode: Low Frequency Transformer
DC input rated voltage (Vdc): 96V or 192V or 220V or 240V
Rated output power: 10KW
Output waveform: Pure sine wave
Phases: two phase 3 wire + ground
Output rated voltage: 110/220vac or 120/240vzc
Output Frequency: 50Hz or 60Hz
Efficiency: >95%
Display: LCD
Start mode: step down voltage or variable frequency start
Certification: European CE(EMC&LVD)

Features：

1, Two start mode: Step down voltage start or variable frequency start.

2, Output voltage, frequency and phase can be customized.

3, Big LCD touch screen, powerful data and fault instructions display, setting flexibly.

4, IPM intelligent module from Japanese Mitsubishi(better than IGBT), powerful protection for short circuit, over-load, over temperature. longer service life 15-20 years, easy for maintenance.
