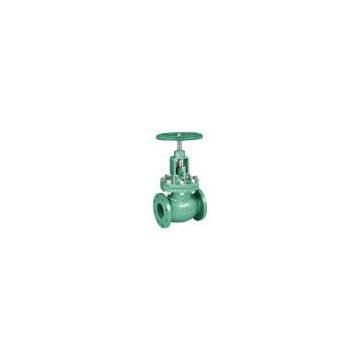

Name: (ANSI) globe valve
PN:
Class(Lb): 150Lb 300Lb 400Lb 600Lb 900Lb 1500Lb
Class(K): 10K 20K 30K
DN(mm): 50~250
Size(inch): 2~10
Working temperature(℃): ~425
Type of connection: flange, butt welding
Operated way: hand wheel, bevel gear, electric, pneumatic
Design & manufacture Std.: GB/T12235, B51873, JIS B2071, MSS-SP-42
Face to face Std.: GB/T12221, BS 2080, ANSI B16.10, JIS B2002
Connection dimension Std.: ANSI B16.5, SH3406, JIS B2212, JIS B2214
Test Std.: GB/T13927, JB/T9092, API 598, JIS B2003
Body material: ASTM WCB, CF8, CF8M
Disc material: ASTM F6a, 304, 316
Sealing face material: 13% Cr, (Co-Cr-W)STL
Suitable medium: water,oil,gas,steam,acids
Certificates: API 6D, API 607, CE 1277, ISO 9001:2000, ISO 14001, TS, OHSAS 18001
A leading provider for valves with good and reliable quality. Send message to me 0086-138-19706320, or write me: supplier0898(at), or chat with me: supplier0898(at)
