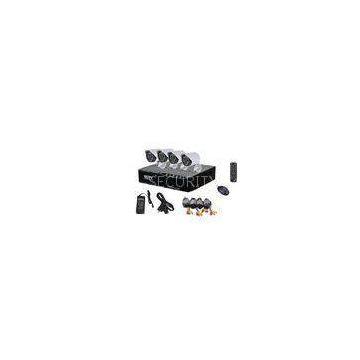

Wifi 4 Camera Security System 720p 4 Channel DVR 320G - 2TB

Name: Wifi 4 Camera Security System 720p 4 Channel DVR 320G - 2TB
Brand: F.R.
SKU: 149801108
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

F.R.

Place of Origin:

China

Model Number:

FR-600W4C+190E

SHENZHEN FULL SECURITY Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Brand Name F.R.

Place of Origin China

Model Number FR-600W4C+190E

Certification:CE FCC ROHS

Wifi 4 Camera Security System 720p 4 Channel DVR 320G - 2TB

Features:

1. 4CH Network DVR

2. Compression format: H.264

3. Frame Rate: 120FPS@960H

4. Support 320G-2TB 3.5\" SATA Hard Disk

5.Video Output: VGA/HDMI

6. 4PCS 1/4 Cmos Camera

7. 600 TVL/ 700TVL for optional

8. 24PCS

Specifictions:

Video Compression	H.264
Video System	NTSC / PAL
Operation System	Linux Based
Video Input / Output	BNC 4-Channel Input / 1-Channel Output
Other Video Output	VGA/HDMI
Audio Input / Output	RCA 2CH
Display Resolution	NTSC: 960H( 960X576 ) / PAL: 960H( 960X576 )
Recording Frame Rate	NTSC: 120 fps @4CH 960H;/ PAL: 100 fps @4CH 960H
Record Resolution	Selectable: NTSC: 960H( 960X576 );D1(704 x 480); CIF (352 x 240) / PAL: 960H( 960X576 );D1(704 x 576); CIF (352 x 288)
Record Mode	Continuous / Time Schedule / Motion Detection
Network Function	Support Live View with IE & Mobile Phone
Network	RJ45, 10M/100M
Net Protocol	TCP/IP, PPPoE, DHCP and DDNS
Remote Access	LAN or Internet Browsing
PTZ Control	RS-485
HDD Interface	SATA II/III, Support between 320GB and 2TB, (Not Includes)
USB	USB Backup/USB 2.0
Remote Control	IR Remote Control
Power Supply	DC12V, 2.5A

Camera Specification:

Image Sensor	1/4\" Color CMOS
Horizontal Resolution	600 TVL
Effective Pixels	NTSC: 768 (H) x 494 (V) / PAL: 752 (H) x 582 (V)
TV System	NTSC / PAL
Lens	3.6mm
Number of IR LEDs	24 LEDs
Infrared Illumination (Night Vision)	up to 65ft
Minimum Illumination	0.0 Lux
S/N Ratio	> 48dB
Video Output	1.0Vp-p, 75ohms
Operating Temperature	-25°F~122°F / -32°C ~50°C
Weatherproof	Yes
Power	12V DC
Material	Metal Shell
