Automatic Rigid Box Making Machine HM-ZD600

yvette@dghongming.com   skype: yvettewang18

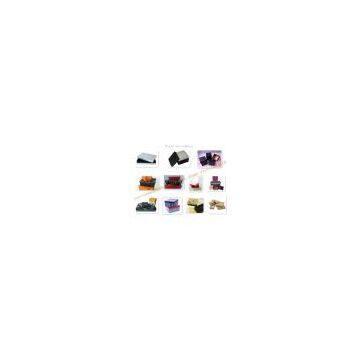

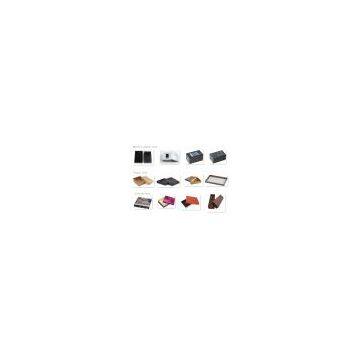

This machine available in all kinds of rigid set up box ( bottom and top boxes) like shoe boxes, cell phone boxes, shirt boxes, garment boxes, gift boxes,jewelry boxes, chocolate boxes, hardware boxes, high grade food boxes,electronic boxes, packaging boxes ect.

Features :

1) High output: 1200-1800 pcs/ hour

2) High-precision: Adopt Switzerland find throttling valve andelectric eye rectify a deviation  (error is ±0.1mm)

3) Feed use servo feeder control system. It saves about 20-30 mins. for adjustthe paper feeder part when change the size. Traditional machine using the camcontrol system which needs to adjust the gears when change the size of paper.The new system (servo feeder) makes it easier and faster. Just input the sizeof the paper into the computer, machine can automatically adjust the gluefeeder part.

4)Turning in edge up to 45 mm:Suit to high quality box production. Please note that the box width must up to 90mm when turn 45mm edge into the bottom. (Optional device)

5) Black and white belt: Black and white belt which suit to different colors ofpaper sheet. Save 3 hours for changing the belt when making different colors ofpaper.

6) Suitto use the PE tape. Traditional machine is using the Kraft paper which is muchthicker on the corner part. After wrapping the box, there is a mark on thecorner part. But using PE tape, the corner part wrapping can be much better asthe PE tape is much thinner. ( Option device)

------------------------------------------------------------------------
Paper Sheet Size B=Length, A=Width

A(max.)    610mm  A ( min.)  95mm

B(max.)    850mm  B ( min.)  180mm

--------------------------------------------------------------------------

Finish boxsieze: L=length, W=width, H=height, T=thickness

L (max.)   600mm  L ( min.)  125mm

W (max.)   400mm  W ( min.)  50mm

H (max.)  130mm  H ( min.) 12mm

T (max.)   3mm     T ( min.) 1.0mm

-----------------------------------------------------------------------------
Folding Edge size ( R )           10mm-20mm

-----------------------------------------------------------------------------
Power       17KW

------------------------------------------------------------------------------
 Machine Dimension        6800x4500x3300mm

-------------------------------------------------------------------------------

Contact:yvette@dghongming.com Skype: yvettewang18

Hongmingmachinery specailly for making rigid box making machine,rigid box makingmachine, rigid box maker and rigid box line. Welcome for more details.

1.      Themax. size and the min. size of box are determined by the max. and min. size ofcover paper.

A( Min.)<W+2H+2T+2R<A(Max.);B( Min.)<L+2H+2T+2R<B(Max.)

2.      Theproduction speed of the rigid box maker is determined by the box size, paperand cardboard materials.

3.      Customizedfolded edge is 45mm

We don’t provide air compressor. (8 atm=0.808MPA , 7.5KW compressor isneeded)
