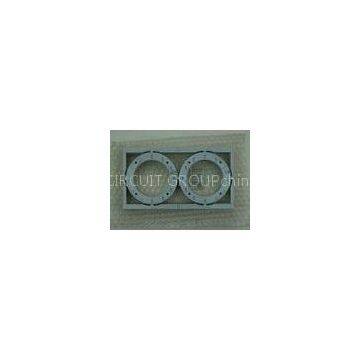

Double Sided Aluminum PCB Board / Metal Core Printed Circuit Board / PWB

Double Layers Metal Core PCB

Double layers MCPCB is consisting of two layers of copper conductor, put them on same side of metal core (usually aluminum, copper or iron alloy). The metal base is on the bottom of whole MCPCB, which is different from double sided MCPCB (the two copper layers were put on the each side of metal core respectively), and you can only populate SMD on top side.

Different with Single layer MCPCB, 2 layers MCPCB requires an additional pressing step to laminate the imaged thermal conductive laminate and metal core (also known as metal base) together.

Compared with normal FR4, this structure needs more technology and experience on laminating of two layers together with metal core.

The processing steps of the MCPCB with the metal base embedded in the PCB are comparatively complex as hole plugging is required after primary drilling on the metal base in order to isolate it from the circuitry.

Application of MCPCB

LED lights: High-current LED, Spotlight, high-current PCB

Industrial power equipment: High-power transistors, transistor arrays, push-pull or totem pole output circuit (to tem pole), solid-state relay, pulse motor driver, the engine Computing amplifiers (Operational amplifier for serro-motor), pole-changing device (Inverter)

Cars: firing implement, power regulator, exchange converters, power controllers, variable optical system

Power: voltage regulator series, switching regulator, DC-DC converters

OA: Printer driver, large electronic display substrate, thermal print head

Audio: input - output amplifier, balanced amplifier, pre-shield amplifier, audio amplifier, power amplifier

Others: Semiconductor thermal insulation board, IC arrays, resistor arrays, Ics carrier chip, heat sink, solar cell substrates, semiconductor refrigeration device

Material

Our Aluminum base material: bergquist (US), Polytronics (Taiwan), totking( china),etc. thermal conductivity range from 1W/m.K to 8 W/m.K Withstand Voltage range is 2KV to 8KV which can help us to meet any need of our clients,also reduce purchasing cost.

Capability

layers:1-4layers

Base material: Aluminum/Copper/Iron Alloy

Thermal Conductivity (dielectrial layer): 0.8, 1.5, 2.0, 3.0 W/m.K.

Withstand voltage:2000-8000V

Board Thickness: 0.5mm~3.0mm(0.02\"~0.12\")

Copper thickness: 0.5 OZ, 1.0 OZ, 2.0 OZ, 3.0 OZ, up to 6 OZ

Outline: Routing, punching, V-Cut

Soldermask: White/Black/Blue/Green/Red ,Taiyo PSR4000 white

Legend/Silkscreen Color: Black/White

Surface finishing: Immersion Gold, HASL, OSP

Max Panel size: 600*1200mm(23.62\"*47.24\")

Packing: Vacuum/Plastic bag

Samples L/T: 4~6 Days
