Scissor Lift With Alignment_vehicle Lift_auto Lift_car Lift Supplier

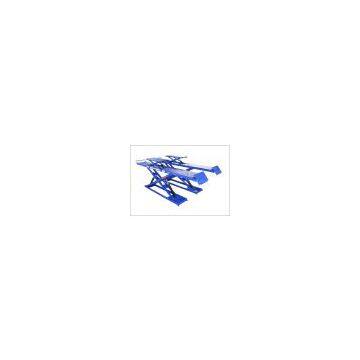

Scissor Lift With Alignment_vehicle Lift_auto Lift_car Lift Supplier photo-1
Scissor Lift With Alignment_vehicle Lift_auto Lift_car Lift Supplier photo-2
Scissor Lift With Alignment_vehicle Lift_auto Lift_car Lift Supplier photo-3
Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
JIG
Place of Origin:
China
Model Number:
ECO7135
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Brand Name JIG
Place of Origin China
Model Number ECO7135
Optional wheel free lift with a loading capacity of 3.0t.
The wheel free lift is hydraulically operated by the same power unit powering the main scissors and has a maximum lifting height of 450mm above the main platform.
Main scissor lifting capacity: 7000LB/3.5T
Main scissor max lifting height: 79”/2000mm
Mail scissor min lifting height: 9.7”/245mm
Secondary scissor max lifting height: 18”/450mm
With Complete Control Box



DESCRIPTION:

WHEEL ALIGNMENT SCISSORS  LIFT



Model:

ECO7135

quantity:

1 SET

Code:84254290

price:$19800.00

Basic function:

Because of the low drive-on height of the lift, the cylinders are nearly horizontal in lowered position. Scissors are provided of a cam lever system to reduce the needed oil pressure at start-up.

Lifts run on scissors for high-precision wheel alignment. The synchronization is guaranteed by a master/slave hydraulic circuit, which has many advantages:

No connection shaft; thereby comfortable working without any obstacle threshold

Possibility to have variable width between platforms

As an additional safety feature, synchronization of the two platforms is monitored via a light photo cell.

Optional wheel free lift with a loading capacity of 3.5t.

The wheel free lift is hydraulically operated by the same power unit ,powering the main scissors and has a maximum lifting height of 400mm above the main platform.

When completely lowered the main platform has a minimum height of 220mm which make it very convenient to be installed not only in foundation but also above floor.

The on-ground model requires optional drive on-ramps.
