3.2 1.5 2.5m VFD Construction Lifts / Building Lifter High Reliability

Wuxi Boruida Machinery Technologies Company
3.2 1.5 2.5m VFD Construction Lifts / Building Lifter High Reliability thumbnail-1
3.2 1.5 2.5m VFD Construction Lifts / Building Lifter High Reliability photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
BORUIDA
Place of Origin:
China
Model Number:
SC-series
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BORUIDA
Place of Origin China
Model Number SC-series
Delivery Time:25-35 days
Certification:CE,ISO

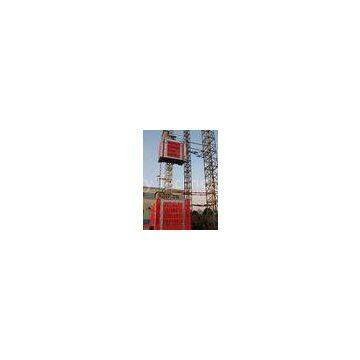

 3.2 x 1.5 x 2.5m VFD Construction lifts / Building Lifter SC320 with Mast Hot-dip Galvanized


Quick Detail:


Name

Other Name

Brand Name

Control

Construction Lift

Construction Lift SC 320

BORUIDA

DOL and FC

Loading Capacity

3200kg

Certificate

CE



Description:

Construction Lift SC 320 is installed and dismounted conveniently and can grow as high as the building grows height.The Construction Lift has such advantages as steady property, safety, reliability,flexible carrying,and good adaptability,etc.,improves working efficiency,and can reduce workers’ working intensity.
It is efficient and safety vertical transporting equipment


Applications:

SC serialization of products Construction Lift is a Rack and Pinion EL. Construction Lift widely applies to such contruction sites as industrial and civil architecture,bridge,underground,large chimney,and ship industry,etc. It suits the vertical transport of materials and personnels and also suits such different occasions as warehouses,high towers, etc.


Specifications

Standard technical datas of single cage :

Parameter

SC100

SC160

SC200

SC270

SC320

Rated
loading capacity
(kg)

1000

1600

2000

2700

3200

Rated lifting speed
(m/min)

0~40

0~40

0~60

0~60

0~60

Rated passenger number

12

18

24

30

38

Max. lifting height(m)

150

250

450

450

450

Engine power(kW)

2*9.5

2*11

2*13

3*18.5

3*22

Cage inner dimension
(L*W*H)(m)

3*1.3*2.5

3*1.4*2.5

3*1.5*2.5

3.2*1.5*2.5

3.6*1.6*2.5

Cage weight (kg)

1400

1500

1800

1950

2050

Mast section weight
(kg)

145

145

163

163

163

Mast section dimension (mm)

650*650*1508

650*650*1508

650*650*1508

650*650*1508

650*650*1508

Safety device type

 SAJ30-1.2

SAJ40-1.2

SAJ40-1.4

SAJ40-1.4

SAJ50-2.0

Hanger rated lifting capacity
(kg)

250

250

250

250

250

Rack module

8

8

8

8

8

SC series construction Lifts:

1). Cage load capacity: 1000kg~3200kg;

2). Lifting speed:33m/min, 0~40m/min;0~60m/min;

3). Increased lifting height on request;

4). Mast section: Painted or hot dipped zinc

5). Cage:double cage

6). Recommended cage inner dimensions (L*W*H): 3*1.3*2.5m, 3*1.4*2.5m, 3*1.5*2.5m, 3.2*1.5*2.
