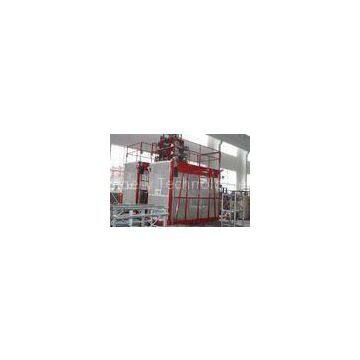

12 - 38 Passenger or 1.6T Construction Material Lifting Hoist Equipment With CE

Wuxi Boruida Machinery Technologies Company
12 - 38 Passenger or 1.6T Construction Material Lifting Hoist Equipment With CE thumbnail-1
12 - 38 Passenger or 1.6T Construction Material Lifting Hoist Equipment With CE photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
BORUIDA
Place of Origin:
China
Model Number:
SC-series
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BORUIDA
Place of Origin China
Model Number SC-series
Delivery Time:25-35 days
Certification:CE,ISO


Construction Material Lifting Hoist SC 160 Double Cage 1600kg Capacity with Mast Hot-dip Galvanized



Quick Detail:


Name

Other Name

Brand Name

Control

Construction elevator

Construction elevator SC 160/160

BORUIDA

DOL and FC

Loading Capacity

1600kg/1600kg

Certificate

CE




Description:

Construction elevator SC 160/160 is installed and dismounted conveniently and can grow as high as the building grows height.The Construction elevator has such advantages as steady property, safety, reliability,flexible carrying,and good adaptability,etc.,improves working efficiency,and can reduce workers’ working intensity. It is efficient and safety vertical transporting equipment


Applications:

SC serialization of products Construction elevator is a Rack and Pinion EL. Construction elevator widely applies to such contruction sites as industrial and civil architecture,bridge,underground,large chimney,and ship industry,etc. It suits the vertical transport of materials and personnels and also suits such different occasions as warehouses,high towers, etc.



Specifications


Standard technical datas of  double cage :

Parameter

SC100/100

SC160/160

SC200/200

SC270/270

SC320/320

Rated
loading capacity
(kg)

1000/1000

1600/1600

2000/2000

2700/2700

3200/3200

Rated lifting speed
(m/min)

0~40

0~40

0~60

0~60

0~60

Rated passenger number

12/12

18/18

24/24

30/30

38/38

Max. lifting height(m)

150

250

450

450

450

Engine power(kW)

2*2*9.5

2*2*11

2*2*13

2*3*18.5

2*3*22

Cage inner dimension
(L*W*H)(m)

3*1.3*2.5

3*1.4*2.5

3*1.5*2.5

3.2*1.5*2.5

3.6*1.6*2.5

Cage weight (kg)

1400

1500

1800

1950

2050

Mast section weight
(kg)

145

145

163

163

163

Mast section dimension (mm)

650*650*1508

650*650*1508

650*650*1508

650*650*1508

650*650*1508

Safety device type

 SAJ30-1.2

SAJ40-1.2

SAJ40-1.4

SAJ40-1.4

SAJ50-2.0

Hanger rated lifting capacity
(kg)

250

250

250

250

250

Rack module

8

8

8

8

8

SC series construction elevators:

1). Cage load capacity: 1000kg~3200kg;

2). Lifting speed:30m/min, 0~40m/min;0~60m/min;

3). Increased lifting height on request;

4). Mast section: Painted or hot dipp
