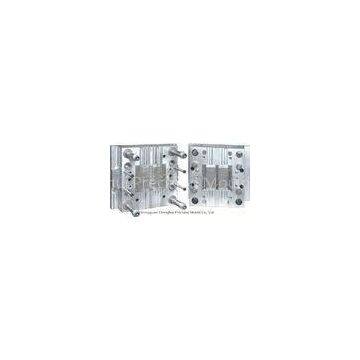

Custom precision plastic mould , Led mould with S45C , S55C , AL7075 Material

FOB Price

Negotiable / Set

1 Set(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

Chenghui

Place of Origin

China

Product Description

Delivery Time:30days
Certification:ISO9000:2008

Precision Plastic LED lead Frame mould for SMD lead frame mould

Material using	imported Tungsten Carbide(CD650,V3,KD20) SKD11,SLD,DC53,ASP-23,ASP-60,S45C,S55C.AL7075 etc .
Spare parts	Standard parts
Gas spring	According customer requirement
Mould parts precision	0.002-0.02mm
Cavities:	Multiple cavity
Type of Gate	Hot Runner Gate
Size	Dimension: depend on customer\'s
First Trial	15 days after stamping moulds drawing confirmed
Quality Assurance	Our QC check key point and size of every producing step and ensure finished mould fit in customer requirement.
Design software	NX(UG),ProE,CAD,CATIA,Solidwork
Packaging Detail	Wooden case, pallet, box, carton,

Design and Production Flow

No.	step
1	Preliminary communication: customer technical communication → get Customer\'s Samples and better got 2D/3D
2	Design details: plastic injection basic information such as injection machine automotive degree, injection ,each product finish time.Design the mould parting line, cavity and core ,punch.
3	Design the mould parting line, cavity and core ,punch.
4	Confirmation mould structure and process.
5	Mould part processing
6	First trial and then send you video, samples to confirm.
7	Adjust; slightly adjust and modify according customer plan
8	mould packing wood case ship to customer.
9	After sale communication.

Advantage

1. Our experinced desing enginer have been working more than 10 years in the LED lead frame mould.field. Many chiese famous stock comapny use our precision mould and gain good reputation. We keep on stimulus and and design innvoating product for our customer .

2. Chenghui Precision Mould have experienced engineer and offer advanced R&D service, your inquire would get prompt responses within 24 hours.

3. Superior material imported from America,Japan, Sweden.

4. Each part has been got strictly test and inspect before shipping.

Cooperate with us

Dongguan Chenghui Precision Mould specialized in high precision and high quality various types of led lead frame mould, progressive stamping die, precision injection mold parts . I warmly invite you to visit our factory at your convenience. Audit and evluate our advanced equipment and process technical, you will find our capability and quality control system. And send inquiry to us.
