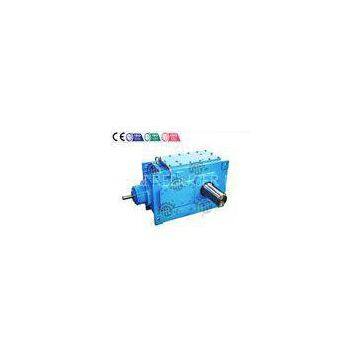

3 Stage 5 - 26 Size Helical Gear Reducer Conveyor Gearbox 450000 N.m , Low Noise
Quick Details
· Gearing Arrangement: Helical
Output Torque: 450000 N.m
Rated Power: 1.1-5100KW
Ratio: 1.25-450
Input Speed: 750-1500 rpm
Output Speed: 1.67-1200RPM
Place of Origin: Zhejiang, China (Mainland)
Model Number: H1SH3-H4SH26
Output shaft: Keyed hollow shaft or solid shaft.
Output shaft diameter: 30-420MM
Gearcase housing: QT Ductile Iron Housing suitable for outdoor installation
Brand Name: HENGTAI
Color: According to customer
Mounting position: foot mounted
Material for box: cast iron
Packing: Strong wooden cases for exporting
Accessories: cooling system, lubrication system
Descriptions:
H.B series helical gear reducer, which is similar to Flender H.B gearbox, big power and torque.
Horizontal and vertical installation, single to four stage, available in 26 sizes.
Our H.B series helical gear reducer is modular design system and multi-purpose use of the housing
and internal components. H.B series helical gear reducer improved noise level through grounded bevel
gear teeth and noise-absorbing housings.
Your benefits:
1, Large ratio
2, Great load-carrying capacity
3, Steady running
4, Low noise
5, High efficiency
6, Competitive price
7, Good quality
8, Good technology support
9, Mounting type: Foot mounted, flange mounted, torque armed mounted
Specification:
|
Series |
Transmission Ratio (i) |
models |
|
H1 |
1.25-5.6 |
H1SH3, H1SH5, H1SH7, H1SH9, H1SH11, H1SH13, H1SH15, H1SH17, H1SH19 |
|
H2 |
6.3-28 |
H2SH4, H2SH5, H2SH6, H2SH7, H2SH8, H2SH9, H2SH10, H2SH11, H2SH12, H2SH13, H2SH14, H2SH15, H2SH16, H2SH17, H2SH18, H2SH19, H2SH20, H2SH21, H2SH22, H2SH23, H2SH24, H2SH25, H2SH26 |
|
H3 |
25-112 |
H3SH4, H3SH5, H3SH6, H3SH7, H3SH8, H3SH9, H3SH10, H3SH11, H3SH12, H3SH13, H3SH14, H3SH15, H3SH16, H3SH17, H3SH18, H3SH19, H3SH20, H3SH21, H3SH22, H3SH23, H3SH24, H3SH25, H3SH26 |
|
H4 |
100-450 |
H4SH5, H4SH6, H4SH7, H4SH8, H4SH9, H4SH10, H4SH11, H4SH12, H4SH13, H4SH14, H4SH15, H4SH16, H4SH17, H4SH18, H34H19, H4SH20, H4SH21, H4SH22, H4SH23, H4SH24, H4SH25, H4SH26 |
Applications:
Bucket elevator drives
Separator drives
Water screw drives
Conveyor drives
Dryer section drives
Maintenance:
After 300-hour operation, please change the oil, and flush the gear unit with suitable detergents.
Pls do not mix the mineral oil and synthetic oil.
Pls check the oil level in regular time.
The cause for breakdown and settlement of reducer:
|
Breakdown |
Possible cause |
The way of settlement |
|
The motor does not run in case of loading |
Voltage is too low |
Check to see if the wire is too long or too thin |
|
Gear is damaged |
Repair it in special factory |
|
|
Work with overload |
Discharge load |
|
|
Very hot |
Work with overload |
Discharge load |
|
Start and stop too many |
Discharge load |
|
|
Bearing is damaged |
Reduce using frequency |
|
|
Voltage is too high or too low |
Repair or replace |
|
|
Loud noise |
If the noise is loud and continuous, the bearing is damaged or the gear damaged |
Repair it in special factory |
|
If the noise is loud occasionally, the gear must be damaged or something else block |
Contact with the service institution |
Warranty:
HFT guarantees the products sold for one year from the date of delivery. Warranty is limited
