Tricolor Blue/green/red Phosphors

Name: Tricolor Blue/green/red Phosphors
Brand: joinunion
SKU: 149719032
Availability: InStock

Shenyang Joinunion Chemical Technology Co.,Ltd

US$ 10 - 100$ MOQ: 100 Metric Tons

Key Specifications

Brand Name:

joinunion

Place of Origin:

China

Model Number:

tri-band

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Brand Name joinunion

Place of Origin China

Model Number tri-band

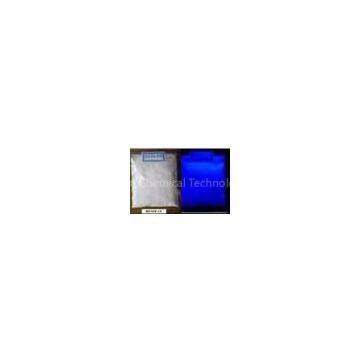

Blue:

Code No.:	JUP-1105
Synonyms:	Barium calcium strontium chloride phosphate, europium-doped
Formula:	(Ca·Sr·Ba)3(PO4)2Cl2:Eu

Purpose:	It is white powder, the material is emitted blue light excitated by ultraviolet ray at 253.7nm. It is the material as luminophore for manufacturing colored fluorescent lamps and improving CRI.
Technology Index:
1.No visible mechanical impurity is allowed inside the powder
2.No remains through screen 80 interval/cm
3.Density: ≤3.9-4.3g/cm³
4.Median particle diameter:D50≤12μm
5.Relative luminosity≥100% of the standard sample
6.Main peak wavelength of the emitting spectrum:452nm

Red

Code No.:	JUP-1340
Synonyms:	Yttrium oxide, europium-doped Yttrium oxide (Y2O3), europium-doped YOX phoshor; YEO phosphor
Formula:	Y2O3: Eu
EINECS No.:	271-591-2
Purpose:	It is white powder. The material is emitted red light excitated by UV lay 253.7nm. It is the material used as luminophore for manufacturing conventional fluorescent lamp and applications utilizing VUV excitation, including Xe excimer lamps and plasma display panels. It is a main component of tricolor (triband) phosphor for CFL and CCFL lamp.
Technology Index:
1.No visible mechanical impurity is allowed inside the powder
2.No remains through screen 80 interval/cm
3.Density: ≤5.15g/cm³

4.Median particle diameter:D50≤6.0μm

5.Relative luminosity: ≥100% of the standard sample

6.Main peak wavelength of the emitting spectrum: 611nm,semiwidth of the spectrum band: 62nm

7.Color coordinate: x=0.650, y=0.345

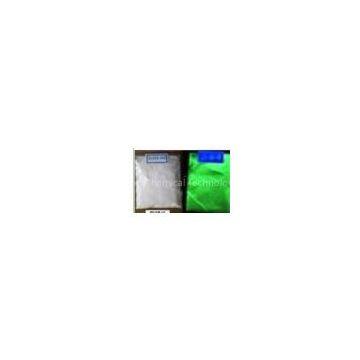

Green

Code No.:	JUP-1213
Synonyms:	Phosphoric acid, lanthanum salt, cerium terbium-doped LAP phosphor
Formula:	(La,Ce,Tb)PO4:Ce,Tb
Purpose:	It is white powder. The material is emitted green light excitated by UV ray at 253.7nm. It is the material used as luminophore for manufacturing conventional fluorescent lamp and applications utilizing VUV excitation, including Xe excimer lamps and plasma display panels. It is a main component of tricolor (triband) phosphor for CFL and CCFL lamp.
Technology Index:
1.No visible mechanical impurity is allowed inside the powder
2.No remains through screen 80 interval/cm
3.Density: ≤5.2±0.1g/cm³
4.Median particle diameter:D50≤6.0±0.5μm
5.Relative luminosity: ≥100%
6.Main peak wavelength of the emitting spectrum: 540±5nm
7.Color coordinate: x=0.344±0.010, y=0.582±0.010
