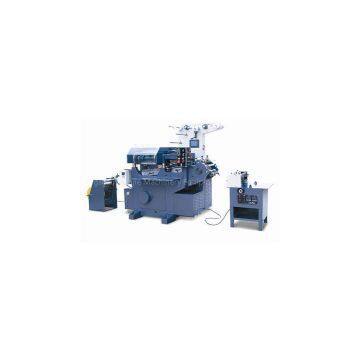

Help CenterCNC Flat-Bed Label Printing Machine (WJXB4230)
Related Products
-
High Speed Label Die Cutting Machine (WJMQ350)US$ 10000 - 10000MOQ: 1 Set -
High Speed Label Die-Cutting Machine (WJMQ-450)US$ 10000 - 10000MOQ: 1 Set
-
Reel Type Silk Screen Printing Machine (WJ-320S)US$ 10000 - 10000MOQ: 1 Set
-
Automatic Label Rewinder Machine (WJFJ350)US$ 500 - 500MOQ: 1 Set
-
Automatic High Speed Label Slitting (WJFT550)US$ 2000 - 2000MOQ: 1 Set
A) The max. Printing area for 4 color is 220*85mm, with Complete 2-color, 3-color and 4-color Attachment, total 21cylinders
B) The machine is equipped with computer which enables high precision and second print possible.
C) Digital input for order makes the operation much easier compared with the mechanic label printing machine of the same model.
D) The servo motor is Yaskawa Japan and the speed reducer is Apex Taiwan.
E) The printing speed can be adjusted between 50-200 times/min.
F) This machine adopts Taiwan Delta inverter, Italian DS second pass detector, Yanxin Taiwan electromagnetic clutch.
G) The main driving system adopts umbrella with spiral gear which makes the machine precise and durable.
H) The main axle uses alloy copper bush and all steel rollers are chromed and grinded.
I) The die-cutting station is separated with the printing station for easy operation.
J) Unwinding, printing, laminating, die-cutting and rewinding could be processed consecutively one time
K) Lubricate automatically
L) Wholly cast-iron station ensures the stable running of the machine.
| Model | WJBQ-4180 | WJBQ-210 | WJBQ-230 | |
| Plate dimension | 180*320mm | 210*390 mm | 230*390 mm | |
| Max. Area |
1-2color | 170*140mm | 200*170 mm | 220*170 |
| 3color | 170*95mm | 200*120 mm | 200*120 mm | |
| 4color | 170*70mm (OPTION) | 200*85 mm | 200*85 mm | |
| Max. paper width | 180mm | 210 mm | 230 mm | |
| Max. paper length | 150mm | 180mm | 180mm | |
| Max. die-cutting Area | 170*170mm | 200*180 mm | 200*180 mm | |
| Print speed | 50-200times/min | 50-200times/min | 50-200times/min | |
| Machine Dimension | 2100*1100*1650mm | 2200*1100*1650mm | 2200*1100*1650mm | |
| Net weight | 2200kg | 2800 km | 3000 km | |
| Gross weight | 2600kg | 3200 km | 3600 km |
