Home > Products > MCS Connector > Female 400V 16A 24 - 14AWG MCS Connector With Pitch 7.5mm SP475 SP478

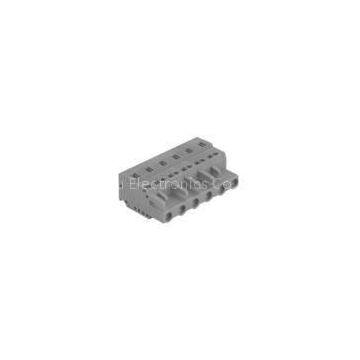

Female 400V 16A 24 - 14AWG MCS Connector With Pitch 7.5mm SP475 SP478
- T/T L/C D/P D/A
- 7 days
You May Like
-
24 - 14AWG Right Angle Pin MCS Connector , 2 - 24 Poles
-
Female Feed-through Plug MCS Connector on Rail - Mounted Terminal Blocks
-
400V 12A 300V 15A PCB MCS Connector With Fixing Flanges 8mm - 9mm Strip Orange
-
400V 12A Orange Spring Cage Clamp MCS Connector with snap in mounting feet
-
400V 16A 0.2 - 2.5 mm2 MCS Connector Protected against Mismating Light Gray
-
Feed-through PCBs 300V 12A 15A MCS Connector with 10 20 24 Pole SP450 SP458
Product Details
| Brand Name | SUPU | Place of Origin | China | |
| Model Number | 475106 |
Product Description
Certification:ROHS, ISO9001, COC, CE, CB, TUV
Female 400V 16A 24 - 14AWG MCS Connector With Pitch 7.5mm SP475 SP478
Quick details
2-24 Female Connectors With Spring-cage Clamp
Pitch 7.5mm/0.295in
400V 16A 300V 15A.
Wire Range 0.2-2.5mm2/24-14AWG.
Order No.:475106(Gray).
◆As PCB Connectors,
◆ As feed-through plug connector,
◆ As plug connectors on rail-mounted terminal blocks,
◆ As plug-in connection for flying leads for different types of assembly,
◆ Applied in PCB, heat pump controller, the door control of a lightrail.
|
Part Name: |
2-24 Female Connectors With Spring-cage Clamp |
|||
|
Pitch: |
7.5mm/0.295in |
|||
|
IEC |
UL |
CSA |
||
|
Rated Voltage: |
400V |
300V |
300V |
|
|
Rated Current: |
16A |
15A |
15A |
|
|
Wire Range |
0.2-2.5mm2/24-14AWG |
|||
|
Available Poles: |
2-24 |
|||
|
Strip length (mm/in): |
8-9mm/0.33 in |
|||
|
Wires: |
Applied for any kind of wires |
|||
|
Connect Ways: |
spring-clipping |
|||
|
Peak Voltage: |
4KV |
|||
|
Weight: |
g |
|||
|
Pollution Severity: |
3 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA66 |
|||
|
Color: |
Gray |
|||
|
Packing: |
100PCS |
|
Picture |
Name |
Order No. |
|
Mounting Tool |
450014 |
|
|
Jumper |
