250V 16A Angled Female MCS Connector With Snap-in Mounting Feet
- T/T L/C D/P D/A
- 7 days
You May Like
-
PCB 12A 15A MCS Connector With Spring Cage Clamp PA66 Insulation Material
-
0.2 - 1.5mm2 24 - 16A WG Spring Cage , PA66 Insulation Material , SPQ 100pcs / box
-
2P Wago 24 -12 AWG 800V 41A Spring Terminal Block Spring-clipping SP206
-
800V 18A Cross - Section 0.2 - 1.5 mm2/24 - 16 AWG 2 Conductor Through Terminal Block
-
3 Conductor 800V 32A Ground Rail Spring Terminal Block Green Yellow
-
800V 32A 4 Conductor Ground Spring Terminal Block 0.2 - 4.0mm2 / 24 - 14 AWG
Product Details
| Brand Name | SUPU | Place of Origin | China | |
| Model Number | SP450 |
Product Description
Certification:ROHS, ISO9001, COC, CE, CB, TUV

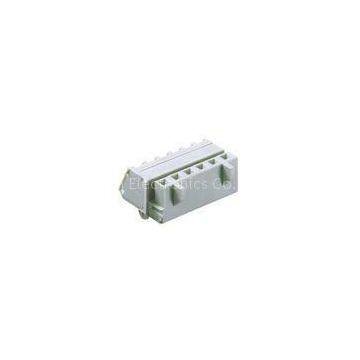

250V 16A Angled Female MCS Connector With Snap-in Mounting Feet
Quick details
2-24 Angled Female Connectors With snap-in mounting feet.
Pitch 5.0mm/0.197in
250V 16A 300V 15A
Wire Range 0.2-2.5mm2/24-12AWG
Order No.:450656/030(Light-Grey).
◆ As PCB Connectors,
◆As feed-through plug connector,
◆ As plug connectors on rail-mounted terminal blocks.
◆ As plug-in connection for flying leads for different types of assembly,
◆ Applied in PCBs, heat pump controller,the door control of a lightrail.
|
Article: |
2-24 Angled Female Connectors With snap-in mounting feet. |
|||
|
Pitch: |
5.0mm/0.197in |
|||
|
IEC |
UL |
CSA |
||
|
Rated Voltage: |
250V |
300V |
300V |
|
|
Rated Current: |
16A |
15A |
15A |
|
|
Wire Range |
0.2-2.5mm2/24-12AWG |
|||
|
Available Poles: |
2-24 |
|||
|
Strip length (mm/in): |
8-9mm/0.33 in |
|||
|
Wires: |
Applied for any kind of wires |
|||
|
Connect Ways: |
spring-clipping |
|||
|
Peak Voltage: |
4.0KV |
|||
|
Weight: |
g |
|||
|
Pollution Severity: |
3 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA66 |
|||
|
Color: |
Light-Gray |
|||
|
Packing: |
100PCS |
