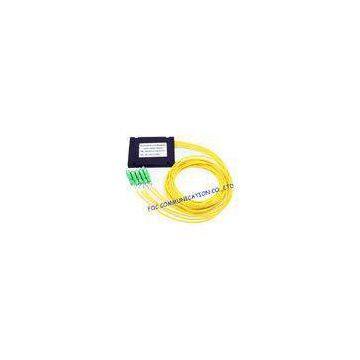

Low Insertion Loss SC APC Connector Wavelength Division Multiplexer

Low Insertion Loss SC APC Connector Wavelength Division Multiplexer ​

Wavelength Division Multiplexer (WDM) is the device which uses multiple optical maser to transmit multi beam of different wavelengths of laser technology through a single fiber. Each signal is transmitted in its unique channel after the data (text, voice, video and so on) modulated. WDM can increase the existing fiber infrastructure for phone companies and other operators.

DWDM (dense wavelength division multiplexing) system can support more than 150 different wavelengths of light beam transmitted simultaneously, and each beam peaked at 10Gb/s data rates. This system provides data transmission over 1Tb/s rate but the cable is smaller than a human hair.

Wavelength division multiplexing technology as a system concept, there are 3 modes, wavelength division multiplexing at 1310 nm and 1550 nm wavelength, CWDM (Coarse Wavelength Division Multiplexing) and DWDM (Dense Wavelength Division Multiplexing).

Features

Low insertion loss

Wide pass band

High channel isolation

High stability and reliability

Epoxy free on optical path

Applications

Line monitoring

WDM network

Telecommunication

Cellular Application

Fiber optical amplifier

Access Network

Specifications

Note: All the data above does not include connectors.

Ordering Information

We can produce WDM including the following:

CWDM device, CWDM module, 1310/1550 Filter WDM, 1310/1490/1550nm Filter WDM, 850/1310nm Filter WDM, 980/1550nm Filter WDM

DWDM device, 100G DWDM Module, 200G DWDM Module

OADM Module (Add/Drop)

Thermal AWG Module, Athermal AWG Module
