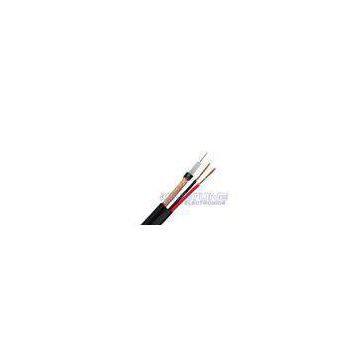

23 AWG BC RG59 B/U Siamese CCTV Coaxial Cable With 24 0.20mm CCA Power for Digital Video
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
KINGTONE OR OEM
Place of Origin:
China
Model Number:
RG59 B/U CCTV Coaxial Cable
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Foamed PE RG59/U CCTV Coaxial Cable 20 AWG BC Conductor 95% CCA Braiding Siamese CableNegotiableMOQ: 1 Piece -
ETL CM RG59/U CCTV Coaxial Cable 20 AWG BC + 18 AWG CCA Power Siamese CableNegotiableMOQ: 1 Piece
-
20 AWG BC Conductor With 7 0.37mm BC Power RG59/U CCTV Coaxial Cable CMR Rated PVCNegotiableMOQ: 1 Piece
-
23 AWG BC Conductor RG59 B/U CCTV Coaxial Cable Solid PE 95% CCA BraidNegotiableMOQ: 1 Piece
-
RG59 CCTV Coaxial Cable 20 AWG BC Foamed PE Bonded AL-Foil 95% CCA Braid PVC CMNegotiableMOQ: 1
Brand Name
KINGTONE OR OEM
Place of Origin
China
Model Number
RG59 B/U CCTV Coaxial Cable
Delivery Time:Normally 15 days
Certification:ISO, UL, CE, RoHS
Certification:ISO, UL, CE, RoHS
23 AWG BC RG59 B/U CCTV Coaxial Cable , 24 × 0.20mm CCA Power Siamese Cable
Quick Detail:
RG59 B/U CCTV Coaxial Cable 24 × 0.20mm CCA Power Conductor 23 AWG BC Conductor 95% CCA Braiding 2C / 0.75mm2 CCA Power Solid PE Insulation 75 Ohms CCTV Cable PVC, RoHS Compliant 500FT, 1000FT, Plastic / Wooden Spool, Carton MOQ: 30 KMDescription:
KT0720 RG59 B/U CCTV Coaxial Cable 95% CCA Braiding + 2C/0.75MM²
RG59/U is a specific type of CCTV coaxial cable , RG59/U (Produced by KINGTONE) is perfect
for any type of surveillance camera installation. RG59/U has a characteristic impedance of 75 ohms.
KINGTONE using best raw material and best worker to produce RG59/U to meet high performance in
practical application. RG59/U is packed in 500FT/1000FT plastic/wooden spool, and will be layed on
pallet to protect the spool and easier carry.Because of good managing methods,
KINGTONE’S price of RG59/U is not high although our quality is really high.
Applications:
Suitable for signal transmission
■ CCTV
■ Local Area Network
■ Digital video
■ Monitor/VDT display
■ Security Camera
Specifications:
| KT0720 RG59 B/U CCTV Coaxial Cable 95% CCA Braiding + 2C/0.75mm2 | ||
| Construction Parameters: | ||
| Inner Conductor | 0.58mm/23AWG | Bare Copper |
| Dielectric | 3.66±0.05mm | Solid PE |
| Shield | Nom. 4.20mm | |
| Strand | 0.12mm/34AWG | Copper Clad Aluminum |
| % Coverage | 95 nom. | |
| Jacket | 6.00±0.1mm | PVC (Color by your choise) |
| Power Wire Conductor | 24×0.20mm | Copper Clad Aluminum |
| Power wire Diameter of insulation | 1.90mm/0.075\" | PVC |
| Power Wire Color Code | Red,Black | |
| Jacket | 5.05±0.1mm/0.199\" | PVC (Color by your choise) |
| * 1 Pair of wire twisted | ||
| Application | For Use in Intermediate CCTV | Run Lengths |
| Limited Length | Typical run length up to | 700 feet |
| Electrical Characteristics: | ||
| Capacitance | 67±2 pF/m | |
| Impedance | 75±3 Ω | |
| Inner Conductor Resistance | 65.26 Ohms/KM at 20℃ | |
| Return loss | between 5 and 1000MHz | > 22dB |
| Velocity of Propagation | 0.66 | |
| Sparker Test (VAC) | 3 | |
| Operating Temp Range (PVC) | -20 ℃ to 70℃ | |
| RoHS | YES | |
| Attenuation(20℃): | ||
| Frequency (MHZ) |
Max Attenuation (dB/100ft) |
Max Attenuation (dB/100m) |
| 1 | 0.64 | 1.96 |
| 10 | 1.18 | 3.61 |
| 50 | 2.58 | 7.87 |
| 100 | 3.66 | 11.15 |
| 200 | 5.27 | 16.07 |
| 400 | 7.53 | 22.97 |
| 700 | 10.44 | 31.83 |
| 900 | 11.93 | 36.40 |
| 1000 | 12.89 | 39.30 |
| Order Informations: | ||
| Marking | KINGTONE KT0720 RG59 B/U 95% CCA
