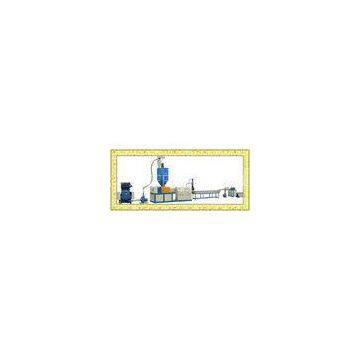

Water Cooling Hot Cutting Plastic Recycling Machines 22kw 380V 68-135kg/h
Certification:CE
Quick Detail:
Description:
This machine is suitable for regeneration and granulation of waste plastics,as HDPE,LDPE,and PP,etc.
It is equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control.
The granulating crusher uses adjustable speed motor,pelleting with an extruding machine at the same
discharging speed synchronistically.The unit is easy to operate,with a high output,steady performance,
and favorable economic benefit.
Specifications:
.Main Technical Variables:
|
Model |
SJ-B90 |
SJ-B100 |
SJ-B110 |
SJ-B120 |
|
Type Diameter of Screw Stem |
φ90 |
φ100 |
φ110 |
φ120 |
|
Major Diameter Ratio of Screw Stem |
L/D 20:1 |
L/D 20:1 |
L/D 20:1 |
L/D 20:1 |
|
Rational Speed of Screw Stem |
10-100r/min |
10-100r/min |
10-100r/min |
10-100r/min |
|
Main Motor Power |
22kw |
30kw |
37kw |
45kw |
|
Output |
68kg/h |
95kg/h |
120kg/h |
135kg/h |
|
Weight of overall(kg) |
2600kg |
2800kg |
3000kg |
3200kg |
|
Cover dimensions (l×w×h) (mm) |
4000×1500×1800 |
4000×1500×1800 |
4000×1500×1800 |
4000×1500×1800 |
