Switching AC to DC Universal Notebook Power Adapter , CEC / ERP External PC Adaptor

Delivery Time:15 Days
Certification:UL/CUL, PSE, TUV/GS,CE, CCC, SAA, ROHS

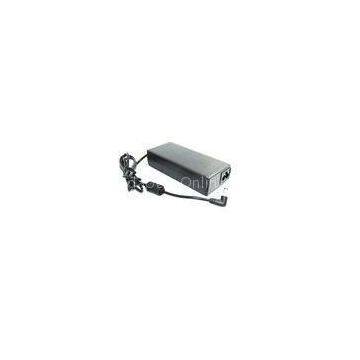

78W 12V DC 6.5A Universal Notebook Power Adapter with 1.8M Cord , C6 Socket

Quick details:

Input voltage: 100 to 240V AC, 50/60Hz Output voltage: 12V 6.5A Power: 78W Dimension (L x W x H): 132*57*31mm Socket type: C6, 3 pins

Description:

1. Surface cosiness,small size and convenient carrying

2. Low cost,high reliability and all cases are covered by ultrasonic

3. Built-in OVP,OCP and SCP

4. Universal input voltage:

a. I/P voltage 100-240VAC;50/60Hz b. Turn on delay time≤3s c. Inrush current≤30A/24V AC

5. O/P:

a. High accuracy and low noice b. Hold up time ≥20mS

6. Operation model: CV

7. Environment:

a. Operation temperature:0°C-40°C;5%-90%RH b. Storage temperature:-20°C-85°C;5%-95%RH

8. Cooling:Natural cooling

9. Energy standard:CEC/ERP

10. Safety standard:IEC/EN60950

11. Insulation: hi-pot, 3,000V AC 60S 10mA

12. Leakage current: 0.25mA (maximum)

13. MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours

14. RoHS compliant

Warranty:	1 year
Certification:	UL/CUL, PSE, TUV/GS,CE, CCC, SAA and ROHS
Usage:	Laptops, notebook
Packaging:	PE bag+ white box  50 pcs/carton
Place of Origin:	China
Brand Name:	WT
Model Numeber	WT1206500
MOQ	500 pcs
Delivery Time:	15 Days
Payment Terms:	T/T(30% in advance, 70% the balance must be paid before the delivery)
Supply Ability:	6000 PCS/Day

Our Advantages:

Professional&experienced engineers Good quality Competitive price Intime service Free samples available  About 10 years experiences OEM/ODM services are highly welcome Flexible to meet dynamic requirements High technology Short Lead time AC input power suitable for the world Soft-start current can reduce the AC input impact efficiency With short-circuit and overload protection Compact size ,light weight 100%full-load burning test Installed with EMI filter ,minimum wave

Some Using Details:

Do not install power supply in locations with high humidity, dust or strong direct sunlight. Connect power supply to the supplied unit. Power supply must be connected to a working electrical AC line with a voltage of 100-240V. Power supply can only be installed indoors. The power supply should be installed in a location with good airflow.
