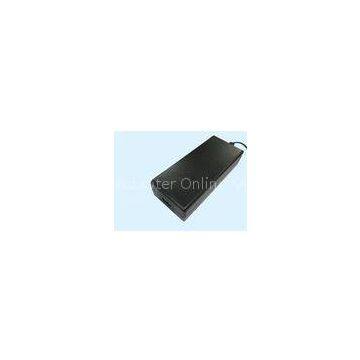

48Vdc Security Camera Power Adapter With US UK EU AU Plug , CE FCC UL Certificate

Electronics Specification :

Input Voltage Range:

90~264Vac

AC current:

1.5A

PF

>0.93

Frequency:

50/60Hz

Inrush Current:

30A/230Vac

Leakage Current:

0.25mA/240Vac

Output Voltage:

48.0Vdc

Output Voltage Range :

45.6 ~ 50.4Vdc

2.0A

Line regulation:

±1%

Load regulation:

±5%

Over current protection:

Hiccup mode, Auto recovery

Over voltage protection:

Power shutdown, Auto recover

Environment :

Working Temp.:

0~40℃

Working Humidity:

20%~90% RH non-condensing

Storage Temp. & Humidity:

-20℃~85℃, 10%~95% RH

Reliability :

Hi-Pot Testing Voltage :

I/P to O/P : 3.0 (60Sec.) KVac

Safety Standard :

EN60950

EMI Standard :

EN55022B

Safety Approval :

Certificate

UL, CE, FCC, C-TICK,CB

Mechanical Characteristics

Size:

(L)150*(W)65*(H)35.5mm

AC connector

IEC8/IEC14

DC Cable:

1.5M

DC connector:

5.5*2.1*12mm, other type connector avaible

Model No.

Voltage

Current range

Ripple & Noise

Eff.

P090D11000

9.0V

0.1~11.0A

90mV

>80%

P120D08500

12.0V

0.1~8.5A

120mV

>85%

P150D06500

15.0V

0.1~6.5A

150mV

>85%

P180D05500

18.0V

0.1~5.5A

180mV

>85%

P240D04200
