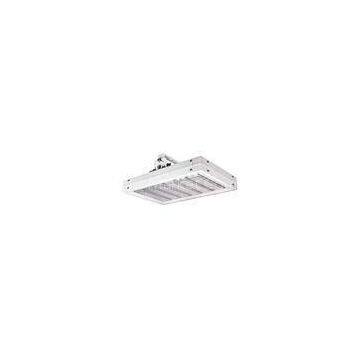

Energy Savings 180W 3500K LED Soffit Lights IP65 With 19800 lm

Delivery Time:1-3 days for samples,5-15 days for order production
Certification:CE, FCC, RoHS, ISO9001,ISO14000

Energy Savings 180W 3500K LED Soffit Lights IP65 With 19800 lm

Quick details:

1. Can replace traditional lamps directly, wide application

2. High-brightness led

3. Multi-choice of color temperature and high color rendering

4. No pressure, no smoke dust

5. High power factor, low harmonic distortion

6. High-quality constant current drive power

7. Led bay light with 4 national patents

8. Significant energy savings, high input-output efficiency


Specifications:

1. LED Wattage: 180W
2. Nominal Wattage: 200W
3. Nominal Voltage: 100-240V AC, 50/60Hz
4. Maximum Current: 2.34A
5. Optimal Operating Temperature:-40℃+50℃
6. Operating Humidity: 10% to 90%
7. Power Fact(PF): > 0.95
8. Driver Efficiency: > 90%
9. LED Luminous Flux: 21600 lm in Initial, 19800 lm in Maintain
10. LED Luminous Efficiency: Up to 110 lm/w
11. CRI: Ra >= 75
12. CCT: 3000-3500K, 5000-5500K, 4000-4500K, 6000-6500K
13. IP Rating: IP65
14. Lifetime: 50000 hours
15. Housing: Anodized Aluminum
16. Heat Radiator: Anodized Aluminum
17. Lens:PC
18. Guarantee: 3 years
19. Fixture Dimensions: 615 x395 x190 mm/24.2 x15.6 x7.5 inches
20. Fixture Weight: 12.3 kg /27.1 lbs
21. Packing Dimension: 665 x445 x220 mm/26.2 x17.5 x8.7 inches
22. Packing Weight: 14.3 kg /31.5 lbs


Description:

ZGSM-LGCD-E series High Bay fixtures were designed specifically to replace conventional lighting in a wide
variety of industrial applications; both indoor and outdoor. Their low profile light weight design and versatile
mounting options make it ideal for many applications such as warehouse, garage, aisle, cold storage, bridge,
tunnel and general area lighting. All of ZGSM’s long lifeLED luminaires are designed to meet the most demanding
specification criteria while offering maximum energy savings, reduced maintenance costs, and a superior quality of
light.


Applications:

Workshops/ Warehouses
Cold Storages
Gas Stations
Indoor Parking Lots


Competitive Advantage:

1. High Quality and Brightness LED Light Source
2. Stable and Efficient LED Driver
3. Optimal Heat Sinking Performance
4. Superior Optical Design
5. Exclusive Appearance Design with Patents
6. Significant energy savings
7. Instant on/off
8. Maintenance free
9. Mercury free
10 .Superior light quality
11. No UV
12. Simple installation
13. Wide input: 100 - 240V AC
14. Resistant to shock and vibration
15. Temperature compensation technology for long life
16. Copper free aluminum
17. Superior Vision-Care
