Certification:UL/CUL, PSE, TUV/GS,CE, CCC, SAA, ROHS

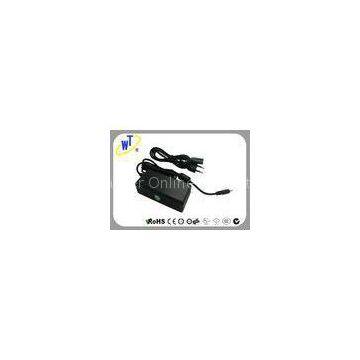

5V 3A 15W Switching Power Supply Adapter with 8 Tips VDE Plug AC Cable
Quick details:
Input voltage: 100 to 240V AC, 50/60Hz Output voltage: 5V 3A Power: 15W Socket type: 8 tips, 2 pinsDescription:
1. Surface cosiness,small size and convenient carrying
2. Low cost,high reliability and all cases are covered by ultrasonic
3. Built-in OVP,OCP and SCP
4. Universal input voltage:
a. I/P voltage 100-240VAC;50/60Hz b. Turn on delay time≤3s c. Inrush current≤30A/24V AC5. O/P:
a. High accuracy and low noice b. Hold up time ≥20mS6. Operation model: CV
7. Environment:
a. Operation temperature:0°C-40°C;5%-90%RH b. Storage temperature:-20°C-85°C;5%-95%RH8. Cooling:Natural cooling
9. Energy standard:CEC/ERP
10. Safety standard:IEC/EN60950
11. Insulation: hi-pot, 3,000V AC 60S 10mA
12. Leakage current: 0.25mA (maximum)
13. MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours
14. RoHS compliant
|
Warranty: |
1 year |
|
Certification: |
UL/CUL, PSE, TUV/GS,CE, CCC, SAA and ROHS |
|
Usage: |
Audio Equipment |
|
Packaging: |
PE bag+ white box 50 pcs/carton |
|
Place of Origin: |
China |
|
Brand Name: |
WT |
|
Model Numeber |
WT0503000 |
|
MOQ |
500 pcs |
|
Delivery Time: |
15 Days |
|
Payment Terms: |
T/T(30% in advance, 70% the balance must be paid before the delivery) |
|
Supply Ability: |
6000 PCS/Day |
Our Advantages:
Professional&experienced engineers Good quality Competitive price Intime service Free samples available About 10 years experiences OEM/ODM services are highly welcome Flexible to meet dynamic requirements High technology Short Lead time AC input power suitable for the world Soft-start current can reduce the AC input impact efficiency With short-circuit and overload protection Compact size ,light weight 100%full-load burning test Installed with EMI filter ,minimum waveSome Using Details:
Do not install power supply in locations with high humidity, dust or strong direct sunlight. Connect power supply to the supplied unit. Power supply must be connected to a working electrical AC line with a voltage of 100-240V. Power supply can only be installed indoors. The power supply should be installed in a location with good airflow.
