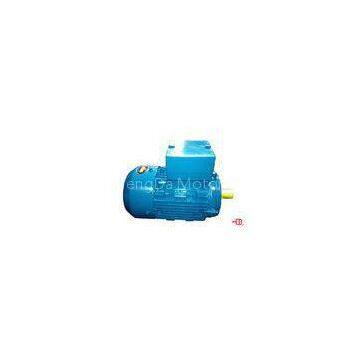

Help Center4 Pole 1500 Rpm 0.33 HP / 10HP IMB3 Three Phase Asynchronous Motor For Compressors
Related Products
-
6 Pole 1000 Rpm 0.18KW 0.24HP Low Voltage Electric Motor With Aluminum FrameNegotiableMOQ: 1 Set -
IE1 4KW / 5KW Three Phase Asynchronous Motor With H63-132 Aluminum FrameNegotiableMOQ: 1 Piece
-
3 Phase Asynchronous Squirrel Cage Electric Motor 0.55kw With Fan CooledNegotiableMOQ: 1 Set
-
0.18KW / 0.25KW Three Phase Asynchronous Motor IMB35 / IM2001 MountingNegotiableMOQ: 1 Set
-
IE1 2 Pole 380V 60HZ CLASS F/B Three Phase Asynchronous Motor With CE / ISO9001NegotiableMOQ: 1 Set
Certification:CE/CCC/ISO9001
IEC Standard IE1 Y2A motors Mounting type B3 in Industry (H 63~132 Aluminum Frame)
|
Ambient |
|
|
Temperature range: |
-20~40℃ |
|
Ambient humidity: |
90%less than relative humidity |
|
Altitude: |
less than 1000m above sea level |
|
Ambient condition: |
no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization |
|
Supply power: |
|
|
Voltage variable |
±5% |
|
frequency variable |
±2% Combine voltage and frequency variable : ±5% |
|
Standard Feature: |
|
|
Standard |
IEC /DIN |
|
Efficiency Level |
IE1 |
|
Phase |
Three-phase |
|
Frame Size |
63~132 Aluminum Frame |
|
Protect Feature |
Totally Enclosed |
|
Output Range |
0.12~7.5KW |
|
Voltage |
380V |
|
Frequency |
50HZ |
|
Poles |
2,4,6,8 |
|
Protection Class |
IP54/IP55 |
|
Insulation |
F/B |
|
Mounting |
IMB3 |
|
Cooling |
IC411 |
|
Duty |
S1 |
|
Connection |
” Y\" type for 3kW and downwards, \"D\" type for 4kW and upwards |
|
Thermometry |
Optional |
|
Overload Times |
According to IEC60034, the motors can withstand 1.5times rated voltage and rated current for 2 minutes. |
|
Certification |
CCC, CE,ISO9001 |
|
Special motors can be designed according to customers\' requirements |
Rated Power
|
Motor Type |
2 pole /3000 rpm |
4 pole /1500 rpm |
6pole /1000 rpm |
8pole /750 rpm |
|||||
|
kW |
HP |
kW |
HP |
kW |
HP |
kW |
HP |
||
|
Y2A-63 |
0.18 |
0.24 |
0.12 |
0.16 |
|||||
|
Y2A-63 |
0.25 |
0.33 |
0.18 |
0.24 |
|||||
|
Y2A-71 |
0.37 |
0.5 |
0.25 |
0.33 |
0.18 |
0.24 |
|||
|
Y2A-71 |
0.55 |
0.75 |
0.37 |
0.5 |
0.25 |
0.33 |
|||
|
Y2A-80 |
0.75 |
1 |
0.55 |
0.75 |
0.37 |
0.5 |
0.18 |
0.24 |
|
|
Y2A-80 |
1.1 |
1.5 |
0.75 |
