Certification:CE/CCC/ISO9001

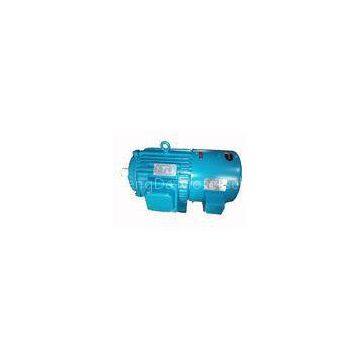

YLJF Three phase torque motors in Industry ( H112 Cast Iron Frame)
Ambient |
|
Temperature range: | -15~40℃ |
Ambient humidity: | 90%less than relative humidity |
Altitude: | less than 1000m above sea level |
Ambient condition: | no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization |
Supply power: |
|
Voltage variable | ±5% |
frequency variable | ±2% Combine voltage and frequency variable : ±5% |
Standard Feature: |
|
Standard | IEC |
Phase | Three-phase |
Frame Size | H112 Cast iron frame |
Frequency | 50HZ |
Cooling type | Axial flow fan |
Voltage | 380V |
Poles | 4,6 |
Blower | Be opened constantly |
Connection | Y |
Certification | CCC, CE,ISO9001 |
Special motors can be designed according to customers\' requirements |
Meaning of type code
Technical Specification
Type | Frame | Output Torque | Pole | Maximum Current | Locked Time |
YLJF112M-6-4 | 112 | 6 | 4 | 3.5 | 15 |
YLJF112M-10-4 | 10 | 6.5 |
|||
YLJF112M-6-6 | 6 | 6 | 3.5 |
||
YLJF112M-10-6 | 10 | 6 |
Mounting and Overall Dimensions(mm)
Frame Size | Mounting Dimensions (mm) | Overall Dimensions (mm) |
|||||||||||||||||||||
A | B | C | D | E | FXGD | G | H | K | T | M | N | P | S | AB | AC | AD | HD | AA | BB | HA | LA | L |
|
YLJF112M | 190 | 140 | 70 | 28 | 60 | 8*7 | 24 | 112 | 12 | 4 | 215 | 180 | 250 | 4-￠15 | 245 | 240 | 205 | 270 | 55 | 185 | 18 | 14 | 450 |
Description:
1,Winding:The tension of YLJF series torque motor will remain steady from blank panel to plateful.
It is convenient to adjust the tension and will repeat normally after regulating.
With reliable structure and low cost, the motor is easy to operate and maintain.
2,Decoiling:The torque motor is in a reverse braking state as tension control. It is able to meet the needs through regulating device to control the size of the braking torque , so the voltage should not be over 300V.
3,Locked:In some special occasions, moment last for some time is necessary.
The locked time for our torque motor can be according to the nameplate. If longer time is needed , bigger motor can be choosed .
4,Moment:Due to the soft mechanical properties , torque motor will have low efficiency during low speed running , so it is unfavorable to operate under low speed for a long time.
Applications:
YLJF series three phase torque motor is a special motor with soft mechanical properties and wide speed range. They can be widely used for metal processing, textile, papermaking, wire and cable, rubber, chemical industry or other similar conditions.
Competitive Advantage:
HD motors stem from China with almost 20years manufacture history,
