Certification:CE/CCC/ISO9001

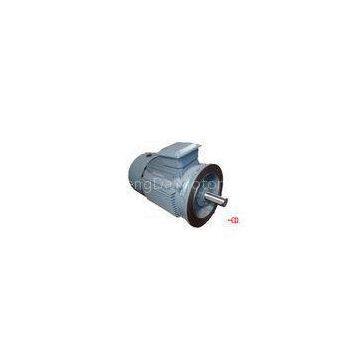

Waterproof Class F/B Inverter Duty Motor , IMB3 / IMB35 Totally Enclosed Motors
|
Ambient |
|
|
Temperature range: |
-15~40℃ |
|
Ambient humidity: |
90%less than relative humidity |
|
Altitude: |
less than 1000m above sea level |
|
Ambient condition: |
no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization |
|
Supply power: |
|
|
Voltage variable |
±5% |
|
frequency variable |
±2% Combine voltage and frequency variable : ±5% |
|
Standard Feature: |
|
|
Standard |
IEC/GB |
|
Efficiency Level |
IE2 |
|
Phase |
Three-phase |
|
Frame Size |
H90~355 cast iron frame |
|
Protect Feature |
Totally Enclosed |
|
Output Range |
0.75~250KW |
|
Frequency |
50HZ( 5~50Hz Constant Torque, 50~100Hz constant power) |
|
Poles |
6 |
|
Protection Class |
IP55 |
|
Insulation |
F/B |
|
Mounting |
IMB3 /IMB35/IMV1 or on your request |
|
Cooling |
IC416 |
|
Duty |
S1 |
|
Lubricating grease |
SRI-2 |
|
Thermometry |
Optional |
|
Certification |
CCC, CE,ISO9001 |
|
Special motors can be designed according to customers\' requirements |
Technical Specification (6 pole/ Synchronous speed 1000r/min in 50HZ )
|
Motor Type |
Rated Power |
Current |
Rated Speed |
Rated Torque |
Power Factor |
Efficiency |
Locked Current |
Locked Torque |
Maximum Torque |
||
|
Rated Current |
Rated Torque |
Rated Torque |
|||||||||
|
kW |
HP |
380V InA |
400V IoA |
r/min |
N.m |
cosΦ |
η% |
Ist/IN |
Tst/TN |
TM/TN |
|
|
YE2VP90S-6 |
0.75 |
1 |
2.1 |
2.0 |
915 |
7.2 |
0.71 |
75.9 |
5.8 |
2.0 |
2.1 |
|
YE2VP90L-6 |
1.1 |
1.5 |
3.0 |
2.8 |
915 |
10.5 |
0.72 |
78.1 |
5.9 |
2.0 |
2.1 |
|
YE2VP100L-6 |
1.5 |
2 |
4.0 |
3.8 |
920 |
14.3 |
0.72 |
79.8 |
5.9 |
2.0 |
2.1 |
|
YE2VP112M-6 |
2.2 |
3 |
