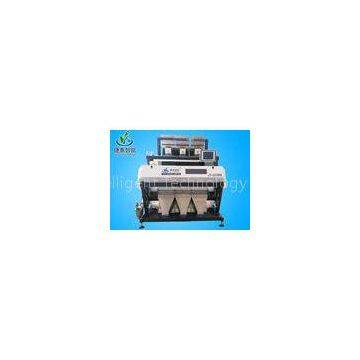

Help CenterCCD Industrial Quartz Sand Colour Sorter Machine With Phoenix Camera
Related Products
-
High Efficiency LED CCD Salt Color Sorter With Double Protect Two FiltersNegotiableMOQ: 1 Piece -
High Accuracy Recycled Plastic / Salt Industrial Sorting Machine AC220VNegotiableMOQ: 1 Ton
-
Automatic LED CCD Industrial Sorting Machine for Salt Recycled PlasticNegotiableMOQ: 1 Piece
-
Phoenix Camera CCD Color Sorter Machine Rice / Grain Grading Machine 4-11 T/HNegotiableMOQ: 1 Piece
-
Custom Millet Rice / Brown Rice CCD LED Sorting Machine With Two SMC FiltersNegotiableMOQ: 1 Piece
Certification:CE,ISO9001
Detailed Product Description:
| Features: | CCD,Triangle background board | Model : | JT-CCDR3 |
| Color: | blue | Camera: | Phoenix from Taiwan |
| Output(T/H): | 1.5-4.5 | Application: | All type of industrial materials |
High Stability CCD Industrial Quartz Sand Color Sorter With Air Pressure ≥ 0.6Mpa
Quick Detail:
1. Advanced and stably LED light source
2. Multi-function triangle background board
3. Double protect filters
4. Super wide rice channels
Description:
1. High brightness and long life LED light source can meet needs of sorting a variety of materials. Unnecessary to change light source when sort different materials.
2. Triangle background board is made of three sides,and it has different light different materials.and it can Three-hundred-sixty degree control to sort diverse materials,Big and small models are universal,using the triangle principle,more stable,no deformation.
3. Our machine is match with two filters which is imported from Japan.The filter device can filter oil, moister and dust from the air source, so pure,dry compressed air into the spray valve.
4. It is consisting of groups of oblique chutes and battens,Super wide 330mm,and each chute with oxidation processing, international advanced level,more capacity and more accurate demanding color sorting.
Applications:
Applicable to Pearl,quartz sand,amorphous silicon, salt,sugar and so on.
Specifications:
| Model | JT-CCDR3 |
| Throughput(T/H) | 1.5-4.5 |
| Sorting Accuracy(%) | 99.99% |
| Optimized carryover | ≥10:1 |
| Voltage(V) | AC220V,50HZ |
| Power(KW) | 1.0-2.5 |
| Air Pressure(Mpa) | ≥0.6 |
| Air Consumption (L/min) | 1000-1800 |
| Weight(Kg) | 900Kg |
| Dimension(mm) L×W×H | 1674 *1520 *1800 |
If material splashing, how to solve ?
1. Big difference in temperature between the material and the material chute,you can Adjust temperature of the chute to approximate that of the material.
2. Dust agglomeration,you can Clean the chute with soft cloth.
3. Chute with scratch,you can Sand papering or replace it.
