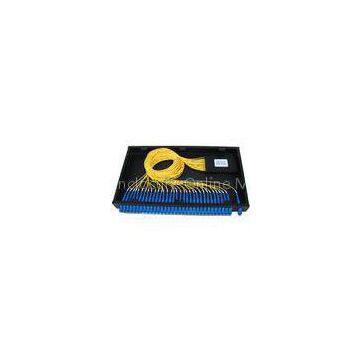

Rack Mounted Fiber Optical Terminal Box , 19 Inch PLC Splitter Box

Delivery Time:3-5 days
Certification:ROHS, SGS

Rack Mounted Fiber Optical Terminal Box , 19 Inch PLC Splitter Box

Description:

The box is made of high quality cold rolled steel, and the surface is treated with Powder painting, painted well, is attractive and durable. It is used for the termination of optic cable, 19” standard, rack mounted, for FC, SC, LC adaptors, convenience for use. This PLC splitter box meet the National Standard of YD/T925-1997. 1-2 cable-in ports,1~32 cores fiber out ports. Protective caps available, increase the flexibility of using.

Feature:

Small package volume easy for management and suitable for various occasions. Single mode and multi mode available 1x2, 1x4 and 1x n customized splitters configuration available

Main technique index:

Size(mm):(L×W×H) 430*250*1U Weight:2.4kg Fiber radius of curvature:≥40mm Added losses: no Length of fiber coiled:≥1.6m Maximum splitter capacity:SC maximum 1:32, FC maximum 2:16 Scope of temperature:-40°C~+60°C Resistance to lateral pressure:500N shock resistance:750N

Package:

Body: 1 set Installation ears:1 pair

Application:

Widely used in FTTH access network Telecommunication networks CATV networks, LAN Network Data communications networks Local area networks Active device termination

Specification:

Type	1*2	1*4	1*8	1*16	1*32	1*64	2*2	2*4	2*8	2*16	2*32	2*64
Item
Insertion loss (dB)	MAX	3.9	7.2	10.5	13.8	16.8	20.8	4.4	7.4	11	14.5	17.5	20.8
Uniformity (dB)	MAX	0.5	0.6	0.8	1	1.3	1.8	0.6	0.8	1	1.5	1.8	2
PDL (dB)	MAX	0.2	0.3	0.4	0.2	0.3	0.4
Operating Wavelength (nm)	/	1260~1650
Return loss (dB)	MIN	50(UPC),55(APC)
Directivity (dB)	MIN	55
Operating Temperature (°C)	/	-40°C~85 °C
Storage Temperature (°C)	/	-40°C~85 °C

Shipping:

Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.) Airport to Airport: by air Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
