High Definition P10 Stadium Perimeter LED Display for Advertising , 10000dots/sqm
Quick Detail:
1. 28°support adjustable
2. Soft mark used
3. High Brightness more than 8000cd/sqm
4. Long lifespan up to 100,000 hours
5. Waterproof and 2 years warranty
6. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION
Description:
1. High Definition & High Brightnes
Owning 10000dots per sqm, the LED display can be used to display video, image, text etc. High brightness
delivers far view distance.
2. Soft Mask
Soft mask design delivers good protection to the players and also decreases damage to LEDs.
3. Adjustable support and quick rigging system
Flexible support design makes LED panel lean by multi angles to cater audience’s needs and quick rigging
system design makes the installation and dismantle easier and faster.
4. High Quality and Reliability
Our many outdoor screens have been used by our clients around the world for 3-5 years and rarely
product issues are called.
5. Waterproof and 2 Year Warranty
Water Proof IP65 and 2 year warranty. LED display can work in all-weather condition very well.
Applications:

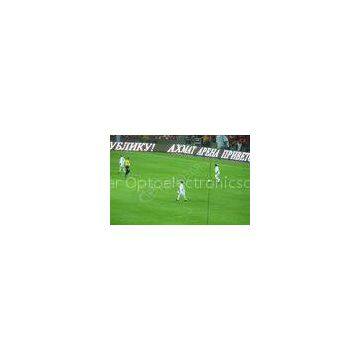

Stadium inside and outside such as football pitch, baseball, basketball etc.
Specifications:
1. Outdoor LED Display Technical Parameter
|
Model No. |
NS-OR-DD-P10 |
|
Pixel Pitch |
10mm |
|
Module Size |
160mm*160mm |
|
Module Resolution (W*H) |
16 dots*16 dots |
|
Pixel Density |
10000 dots/ ㎡ |
|
LED Type |
3mm Oval Lamp |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/4 Duty Constant Current |
|
Cabinet Size |
960×640×150mm |
|
Cabinet Resolution |
96dots×64dots |
|
Brightness |
≥ 6000cd/㎡ |
|
Contrast |
≥ 2000:1 |
|
Viewing Angle |
110°(Horizontal )/45°(Vertical ) |
|
Best Viewing Distance |
10m-300m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16,777,216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
1000 W//㎡ |
|
Average Power Consumption |
350 W//㎡ |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85 HZ |
|
Refresh Frequency |
240 - 1000HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
Static:-40℃~+85℃Working:-20~+65℃ |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Signal Input |
RF,S-Video, RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite |
|
Video Signal Output |
RF, S-Video, RGB, RGBHV, YUV, YC etc. |
|
Graphics Card |
DVI Graphi |
