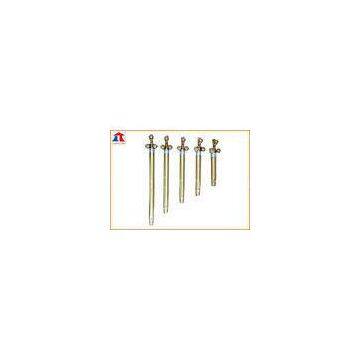

CNC Machine Oxy-fuel Flame Cutting Torch , Balanced Pressure Structure
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Longteng
Place of Origin:
China
Model Number:
LT-SJ
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
180mm Brass CNC Flame Cutting Machine Use Flame Cutting TorchNegotiableMOQ: 1 Set -
30 mm Brass Flame Steel Cutting Torch , Zinc Powder Spraying And Marking TorchesNegotiableMOQ: 1 Set
-
Oxygen Acetylene CNC Machine Flame Cutting Torch , Connecting Cutting Nozzles / TipsNegotiableMOQ: 1 Set
-
Machine Digital Control CNC Flame Cutting Torch OD 30mm , Length 300mmNegotiableMOQ: 1 Set
-
Fuel Gas Flame Cutting Torch For CNC Cutting Machine 370mm , OD 30mmNegotiableMOQ: 1 Set
Brand Name
Longteng
Place of Origin
China
Model Number
LT-SJ
Delivery Time:7-15 days after the payment
Certification:CE,ISO
Certification:CE,ISO
CNC Machine Oxy-fuel Flame Cutting Torch , Balanced Pressure Structure
1) Quick Detail:
1. Machine use flame cutting torch
2. For CNC flame cutting machine
3. Balanced pressure structure design cutter to cut the steel plate
2) Description:
1> Structural Features
1. It is made of high quality forging brass.
2. Balanced pressure structure design.
3. It adopts silver solder, which can effectively avoid leakage.
4. O.D.of the tube: 30 mm and 32mm.
5. The length of the tube: 180mm,250mm,300mm,370mm,450mm.
6. The gear rack can be installed at 4 different positions with 90 degrees between two positions.
7. It is suitable for balanced pressure cutting nozzle/tip with cone of 30 degrees.
3) Applications:
Machine Use Digital Control Cutting Torch is suitable for use in digital control flame cutting machines, and is used to connect the cutting nozzles/tips, cutting steel and other metal materials. Cutting Torch is the main tool of gas cutting machine, also known as the torch. The fuel gas and oxygen mixture in the cutting torch, in the form of heat and has a preheating flame shape, in center of the preheating flame, the high pressure oxygen flow is injected for flame cutting work.
During the cutting process, an oxy-fuel cutting torch is used to heat metal to its kindling temperature, and each cutting torch has three valves to control the gas, two blue valves for oxygen, one red valve for fuel gas. From Left to Right for each is the preheating oxygen, the cutting oxygen, the fuel gas.
The torch needs to match with the cutting tip for cutting, and the different type of cutting tip uses for cutting different thickness of the steel plate. According to different height of the CNC flame cutting machine, the clients will choose the different length oxy-fuel cutting torch.
4) Specifications:
|
Model Number |
LT-SJ |
|
Brand Name |
Longteng, OEM |
|
Place of Origin |
Wuxi, China (Mainland) |
|
Certification |
CE,ISO |
|
Loading Port |
FOB Shanghai |
|
Payment Terms |
T/T, L/C, Western Union |
|
Material |
Brass |
|
Outer Diameter |
30mm/32mm |
|
Driving form |
Automatic |
|
Electric current |
Direct(A) |
|
Type |
Injection-type torches |
|
Woking pressure |
254 KN |
|
Thimble Length(mm) |
Cutting Thickness(mm) |
Rack Length/Modulus |
Acetylenecutting tips |
Propane cutting tips |
Inlet connection |
|
180 |
300 |
/ |
G02#0-#5 |
G03#0-#5 |
M16*1.5 |
|
250 |
300 |
150/1 |
G02#0-#5 |
G03#0-#5 |
M16*1.5 |
|
300 |
300 |
210/1 |
G02#0-#5 |
G03#0-#5 |
M16*1.5 |
|
370 |
300 |
210/1 |
G02#0-#5 |
G03#0-#5 |
M16*1.5 |
|
450 |
300 |
310/1 |
G02#0-#5 |
G03#0-#5 |
M16*1.5 |
