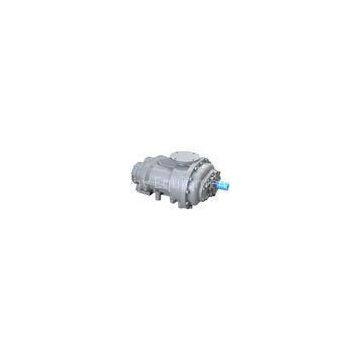

75kW Industry Diesel / Motor Drive Screw Compressor Air End 1.25 MPa
- T/T L/C D/P D/A
- 7 days
You May Like
-
Low Noise Double Screw Belt Drive Air End For Air Compressor , 7.5kw - 11kw
-
Two Stage Rotary Screw Gas Compressor , Skid Mounted Oil Injected Screw Compressor
-
MPV electric pressure release valves of air compressor components
-
Professional electric intake valves For Air Compressor AC 220v 50hz / 60hz
-
9 bar Process Gas Screw Compressor
-
Elastic Spider coupler Air Compressor Couplings 30kw Motor Frame 200l
Product Details
| Brand Name | BAOSI | Place of Origin | China | |
Product Description
Certification:ISO9001
75kW Industry Diesel / Motor Drive Screw Compressor Air End BSL178RA
Quick Detail:
Model: BSL178RA
Colour : Gray
Material : HT250
Power : 7.5-11.5KW
Driven: Belt drive/Direct Drive/Diesel Drive
Place of Origin: Zhejiang ,China
Gross Weight : 243kg
Measure: 80*59*44cm
Description:
No transmission losses
Larger air ends running at low speed are more effient
1:1 drive lowers maintenance costs
Inverter can be equipped with a flexible operational
Control air to reach energy-saving effect
Applications:
ONLY FOR SCREW AIR COMPRESSOR
Specifications :
|
Discharge Pressure(MPa) Rotate Speed(rpm) |
0.7 | 0.8 | 1.0 | 1.25 | |
| 2975 | Shaft Power(kw) | 73.5 | 79 | 88 | 99 |
| Capacity(m³/min) | 12.1 | 12 | 11.9 | 11.7 |
|
Discharge Pressure(MPa) Rotate Speed(rpm) |
0.8 | 0.8 | 1.0 | 1.25 | |
| 2200 | Shaft Power(kw) | 60 | 66 | 75 | 80 |
| Capacity(m³/min) | 8.8 | 8.7 | 8.6 | 8.5 |
Competitive advantages:
No transmission losses
Larger air ends running at low speed are more effient
1:1 drive lowers maintenance costs
Inverter can be equipped with a flexible operational
Control air to reach energy-saving effect
