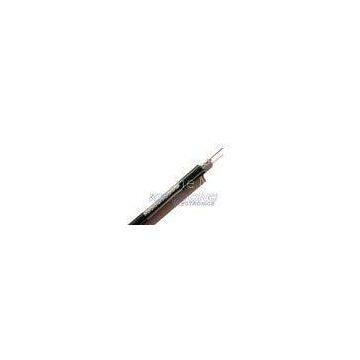

Professional Black PVC 75Ohm CATV Coaxial Cable with Foamed PE Insulation
Quick Detail:
RG6 CATV Coaxial Cable 18AWG CCS Conductor 60% AL Braiding Second 40% AL Braiding Foamed PE Insulation 75 Ohms Bonded AL-Foil Messenger Tested to 3GHz ISO,CE,RoHS,UL 300M,1000FT,1000MDescription:
KT0677 RG6 CATV COAXIAL CABLE 18AWG CCS B.60% Non-B.40% PVC-CM Messenger
is a specific type of CATV coaxial cable , RG 6(Produced by KINGTONE) is perfect for
digital Cable and Satalite, Attenas, and communication systems. RG 6 has a characteristic
impedance of 75 ohms. KINGTONE using best raw material and best worker to produce
RG 6 to meet high performance in practical application. RG 6 is packed in 300M/1000FT/
1000M wooden spool, and will be layed on pallet to protect the spool and easier carry.
Because of good managing methods, KINGTONE’S price of RG 6 is not high although
our quality is really high.
Applications:
Suitable for RF signal transmission
■ CATV
■ MATV
■ CCTV
■ Local Area Network
■ Digital video
■ Antennas
|
KT0677 RG6 CATV COAXIAL CABLE 18AWG CCS Bonded 60% Non-Bonded 40% AL Braiding PVC-CM Messenger |
||
| Construction Parameters: | ||
| Inner Conductor | 0.040\"/1.02mm/18AWG | Copper Clad Steel |
| Dielectric | 0.180\"/4.57mm Foamed PE | Gas Expanded Polyethylene |
| Shield 1 | 0.187\"/4.75mm | Bonded Aluminum Polyproylene |
| Shield 2 | 60% coverage | Aluminum braid wire |
| Shield 3 | Laminated Aluminum Tape | Non-Bonded |
| Shield 4 | 40% coverage | Aluminum braid wire |
| Jacket | 0.297\"±0.006\"/7.54±0.15mm | PVC CM |
| Jacket Thickness | 0.033\"/0.84mm | |
| Messenger | 0.051\"/1.30mm | |
| Minimum Breaking Strength | 180lbs./82kg | |
| Application | For Use in Longer CATV | Run Lengths |
| Electrical Characteristics: | ||
| Inner Conductor Resistance | The Max. at 20℃ shall be | < 87 Ω/km ; < 26.6Ω/1000ft |
| Capacitance | 52 ±3 pF/m | 15.9 ±0.9 pF/ft |
| Impedance | 75 ± 3 Ω | |
| Return loss | between 5 and 1000MHz: | > 22dB |
| Velocity of Propagation | 0.85 | |
| Sparker Test (VAC) | 4 | |
| Attenuation(20℃): | ||
|
Frequency (MHZ) |
Max Attenuation (dB/100ft) |
Max Attenuation (dB/100m) |
| 5 | 0.58 | 1.90 |
| 55 | 1.60 | 5.25 |
| 83 | 1.95 | 6.40 |
| 187 | 2.85 | 9.35 |
| 211 | 3.05 | 10.00 |
| 250 | 3.30 | 10.82 |
| 300 | 3.55 | 11.64 |
| 350 | 3.85 | 12.63 |
| 400 | 4.15 | 13.61 |
| 450 | 4.40 | 14.43 |
| 500 | 4.66 | 15.29 |
| 550 | 4.90 | 16.08 |
| 600 | 5.10 | 16.73 |
| 750 | 5.65 | 18.54 |
